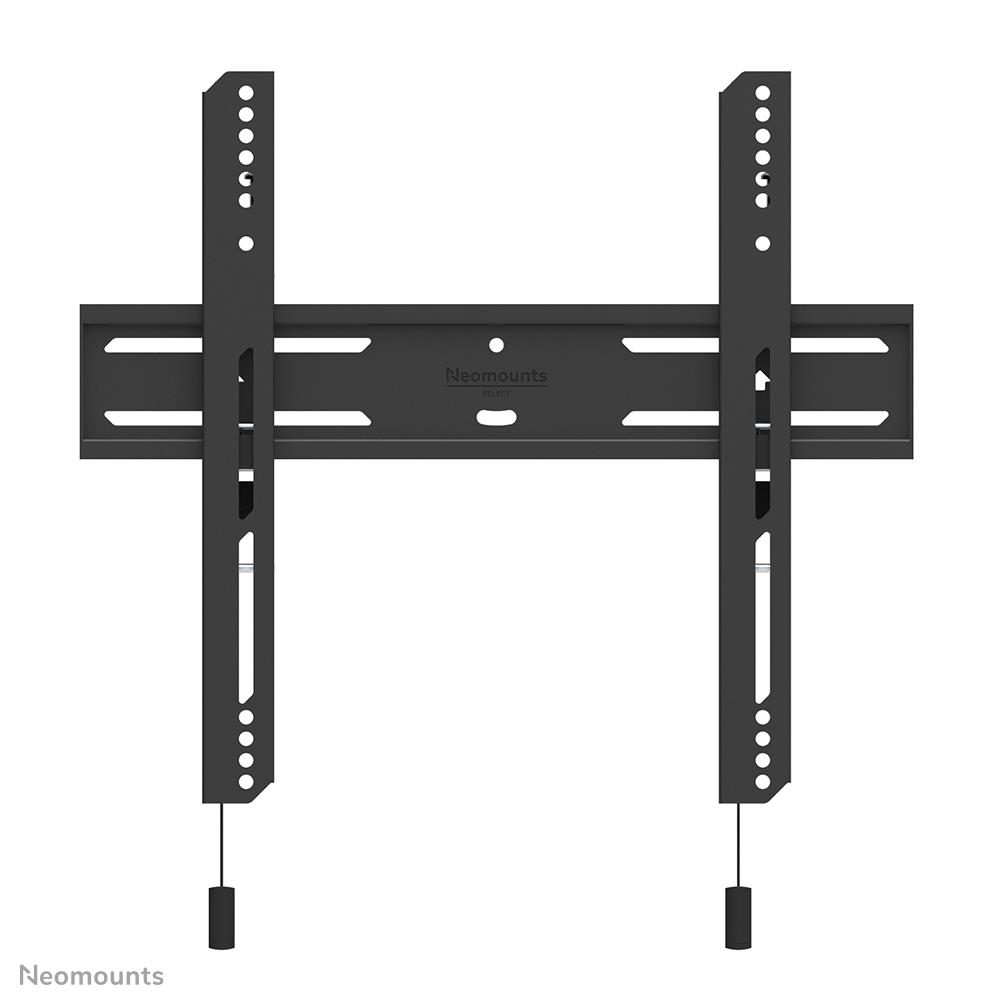

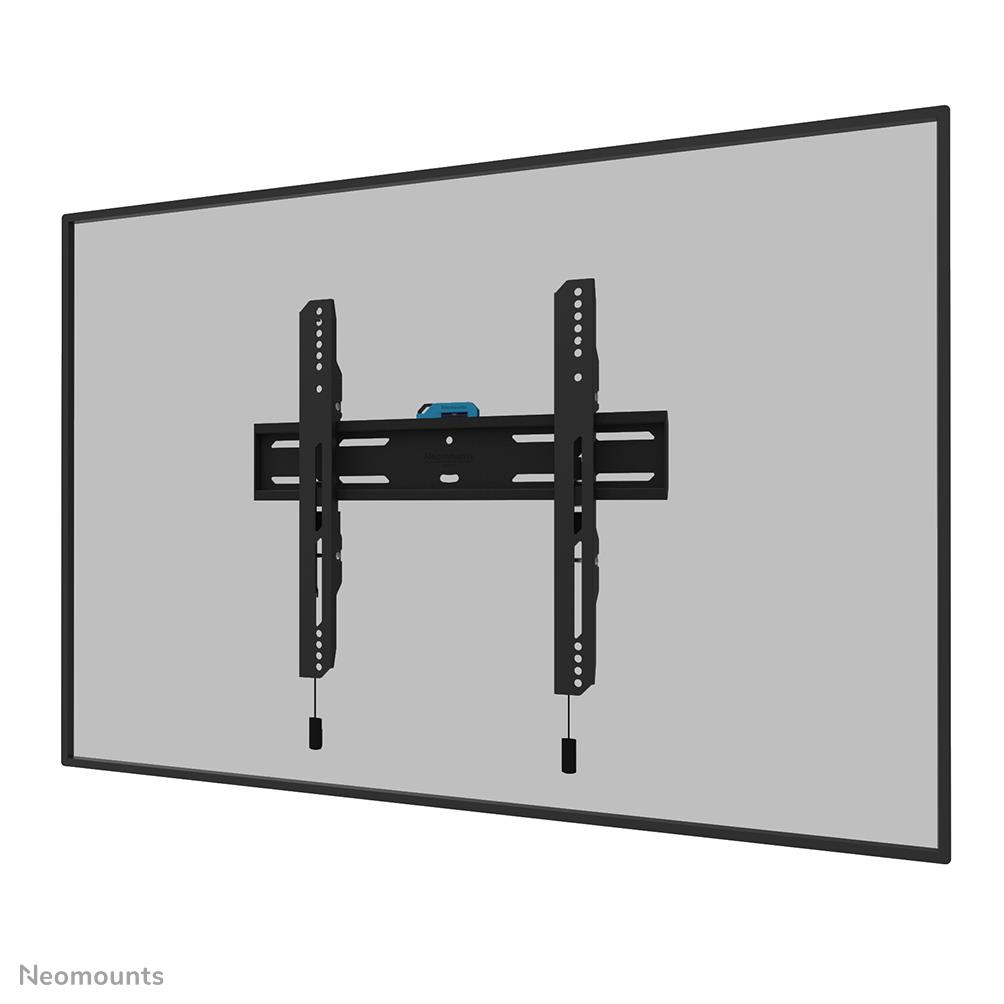

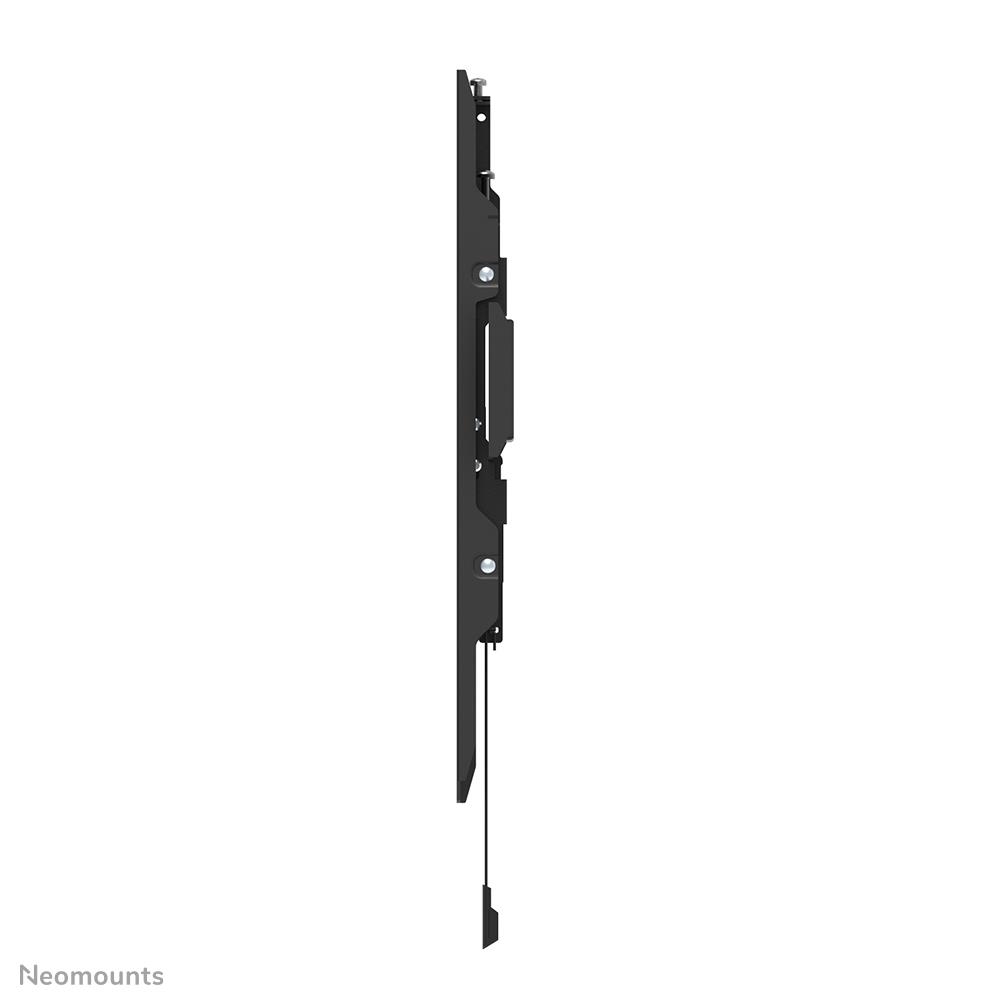

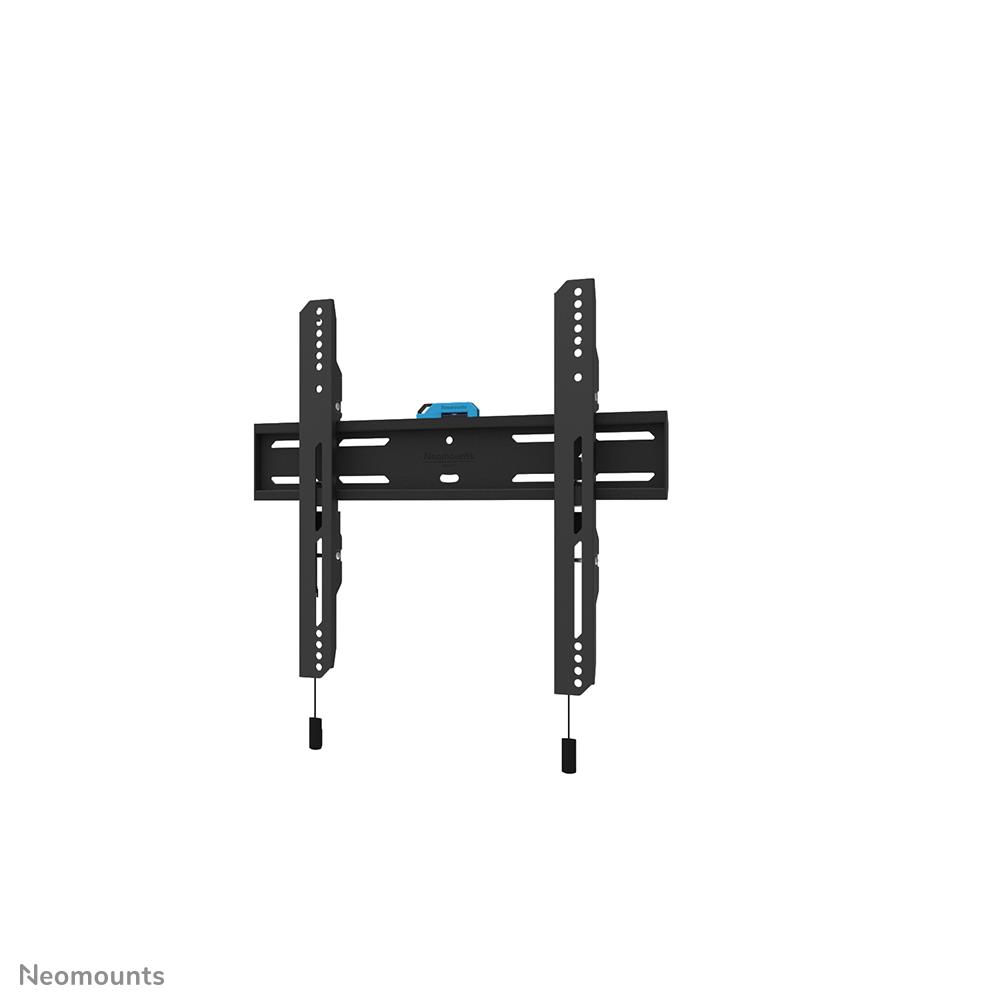

The Neomounts WL30S-850BL14 LEVEL is a fixed wall mount for flat screens up to 75" with a maximum weight capacity of 50 kg. Height and level adjustment is available for the perfect installation.

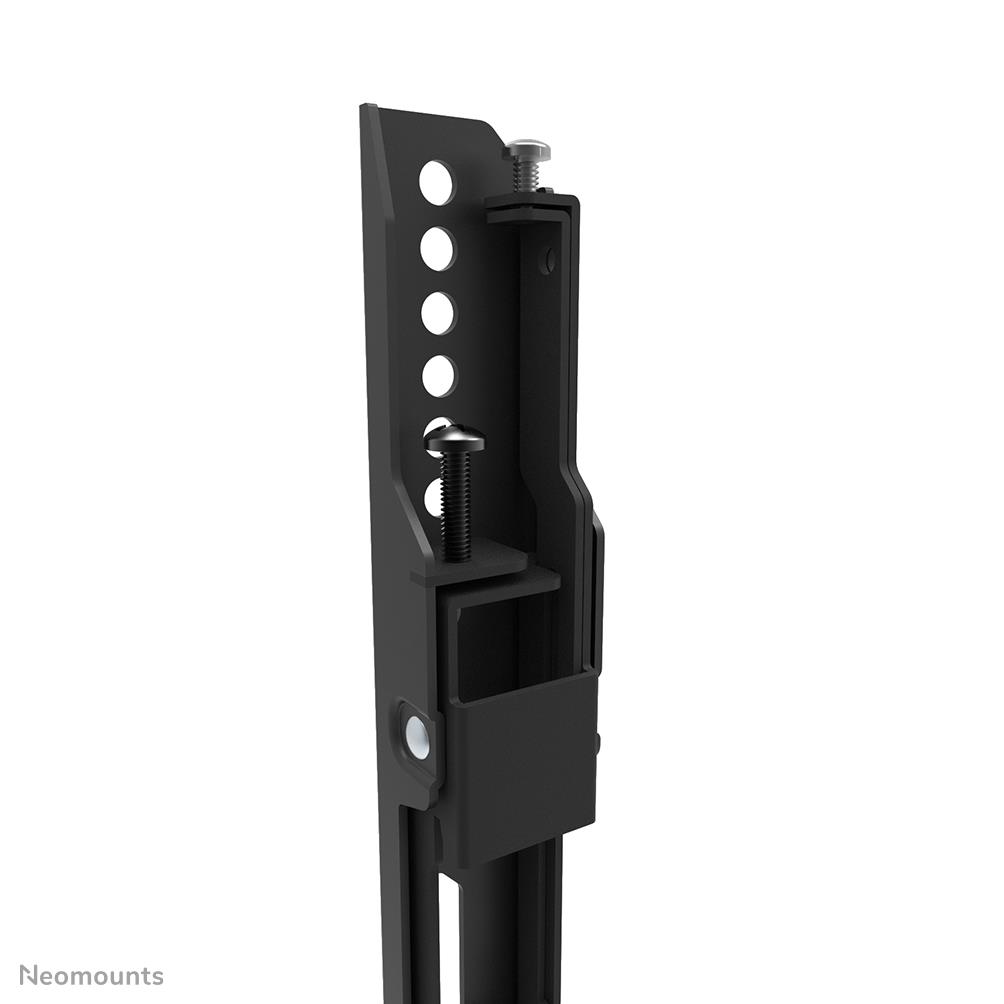

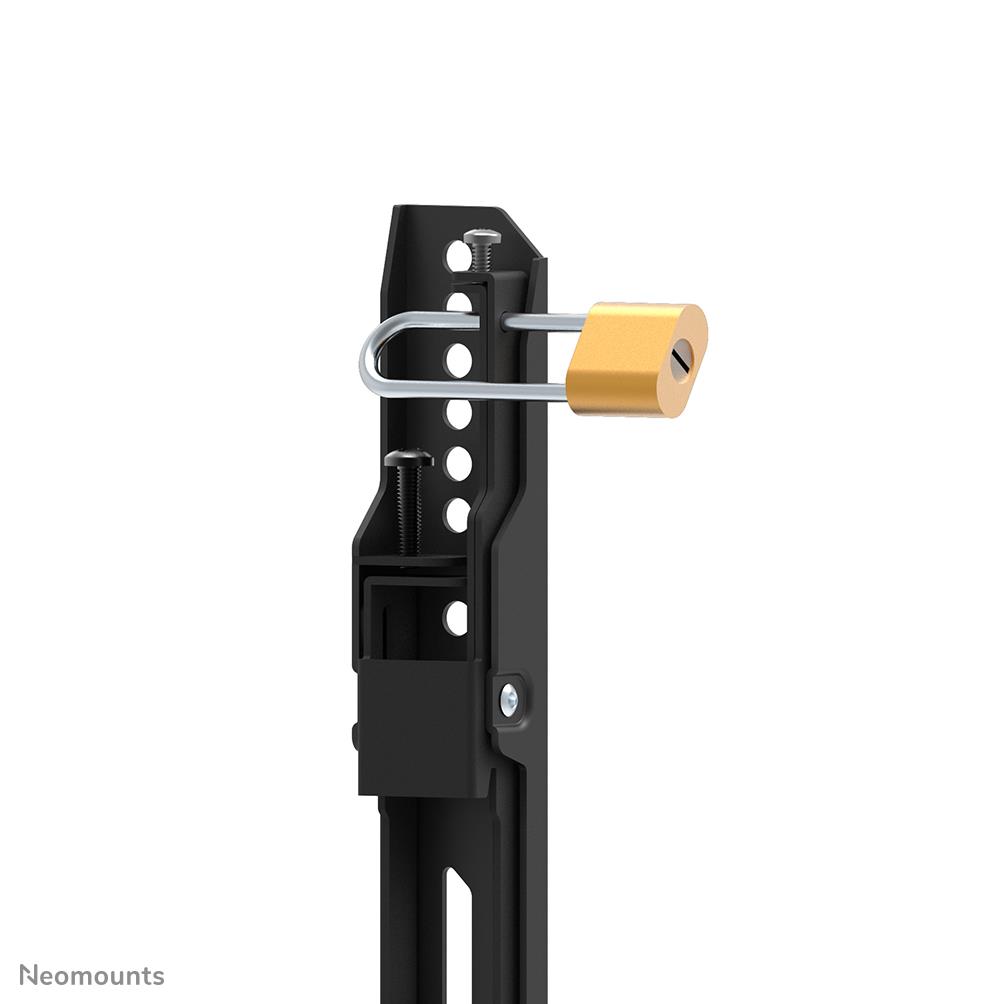

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

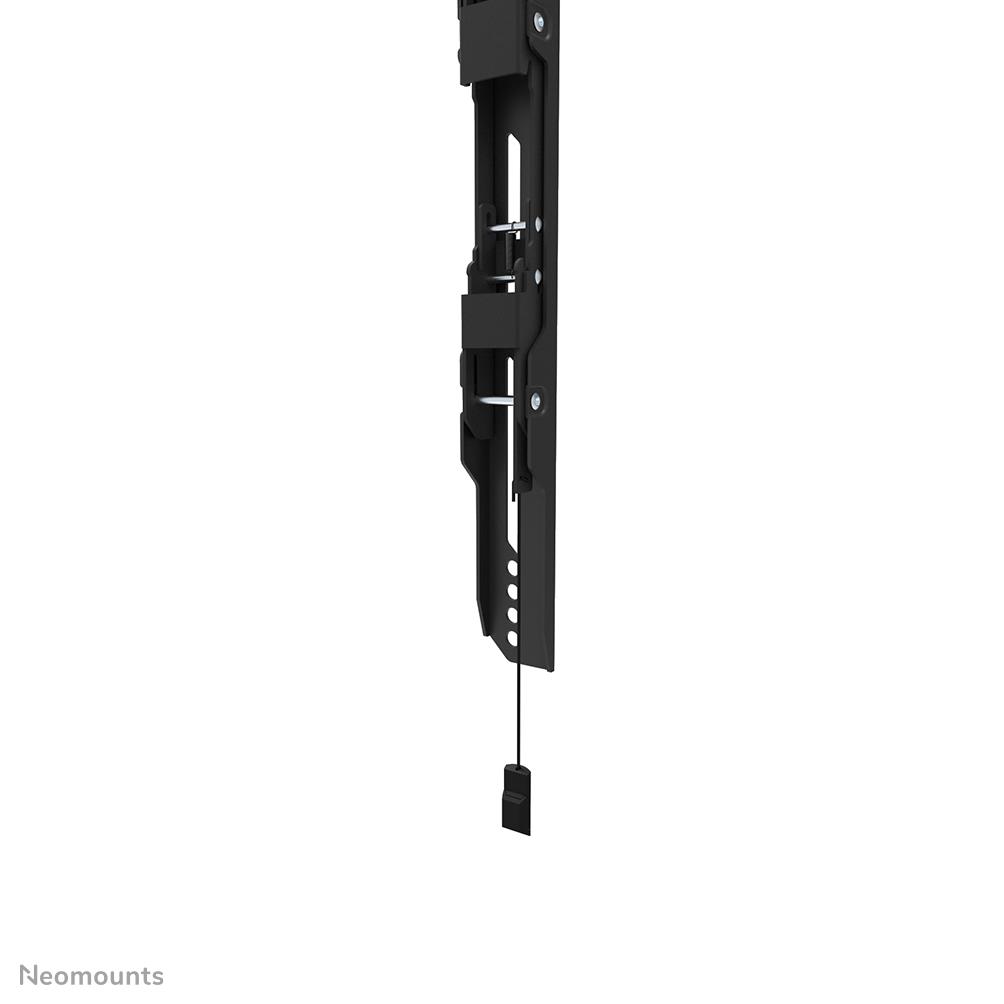

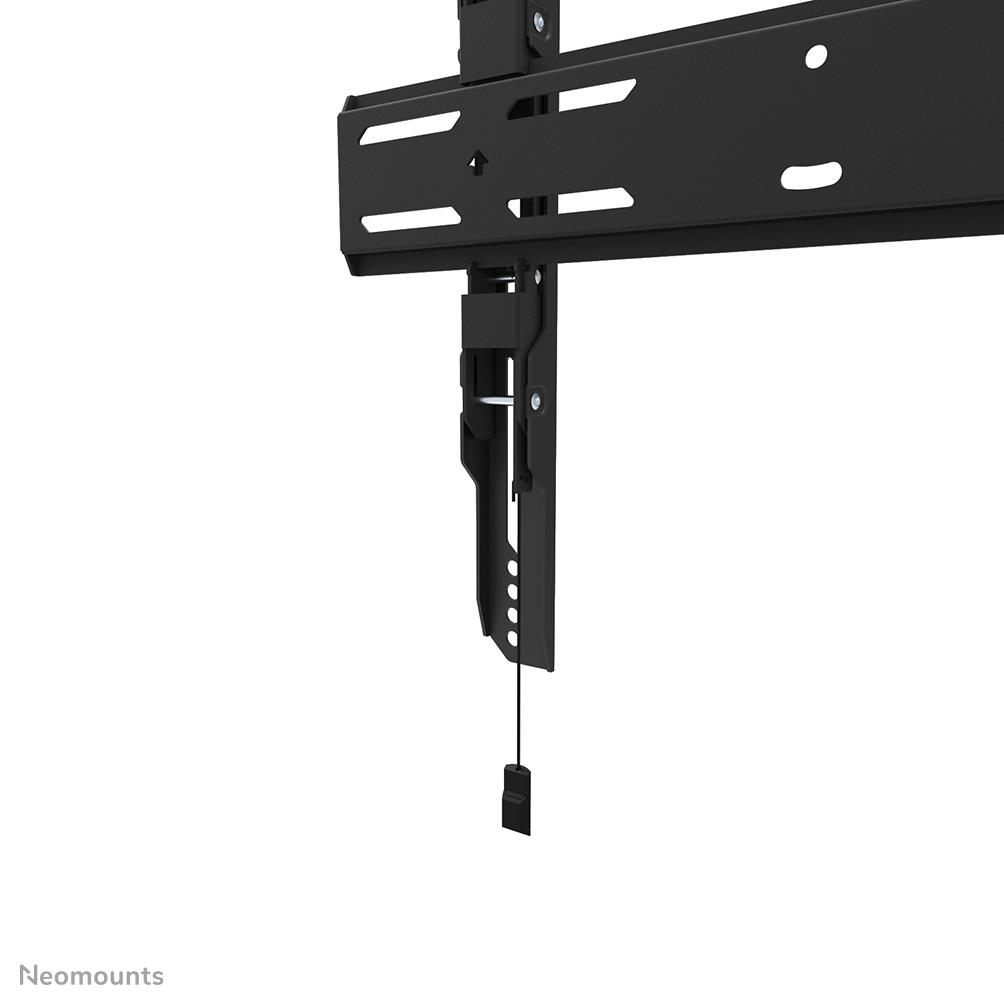

The WL30S-850BL14 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
General
| Unit Calculated Weight | 3.1 kg |
| Unit Calculated Volume | 0.009088 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL30S-850BL14 TV mount wall 40-75" - fixed - lockable - fast installation. Maximum weight capacity: 50 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 0 - 20 mm, Distance to the wall (max): 3.3 cm. Product colour: Black |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.71 |
| Unit Box Width | 0.08 |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 50 kg |
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400 mm |
Ergonomics
| Distance to the wall (max) | 33 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Type | Fixed |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Security screw included |
| Package net weight | 3100 g |
Weight & dimensions
| Depth | 33 mm |
| Depth (max) | 33 mm |
| Height | 425 mm |
| Weight | 2100 g |
| Width | 484 mm |
Packaging data
| Package depth | 158 mm |
| Package height | 74 mm |
| Package weight | 3100 g |
| Package width | 704 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 19100 g |
| Master (outer) case height | 343 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case net weight | 14300 g |
| Master (outer) case width | 724 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 96 pc(s) |
