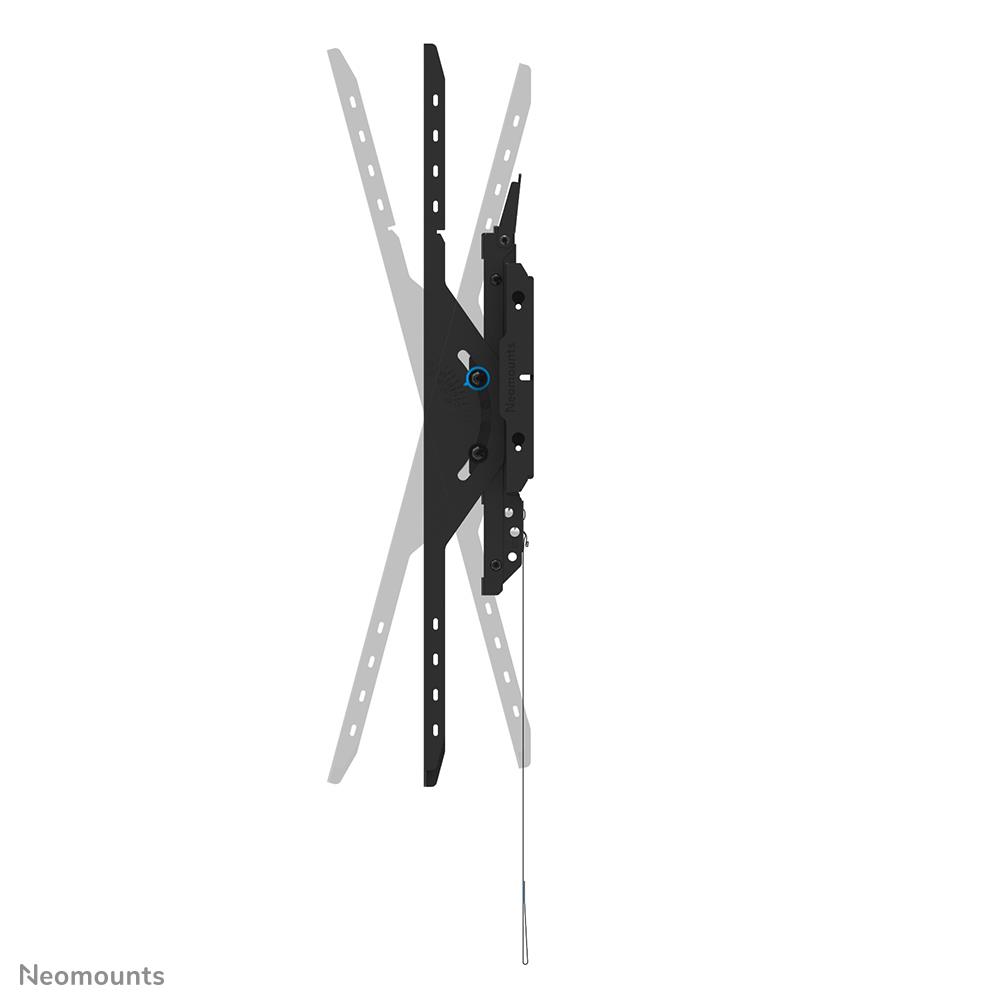

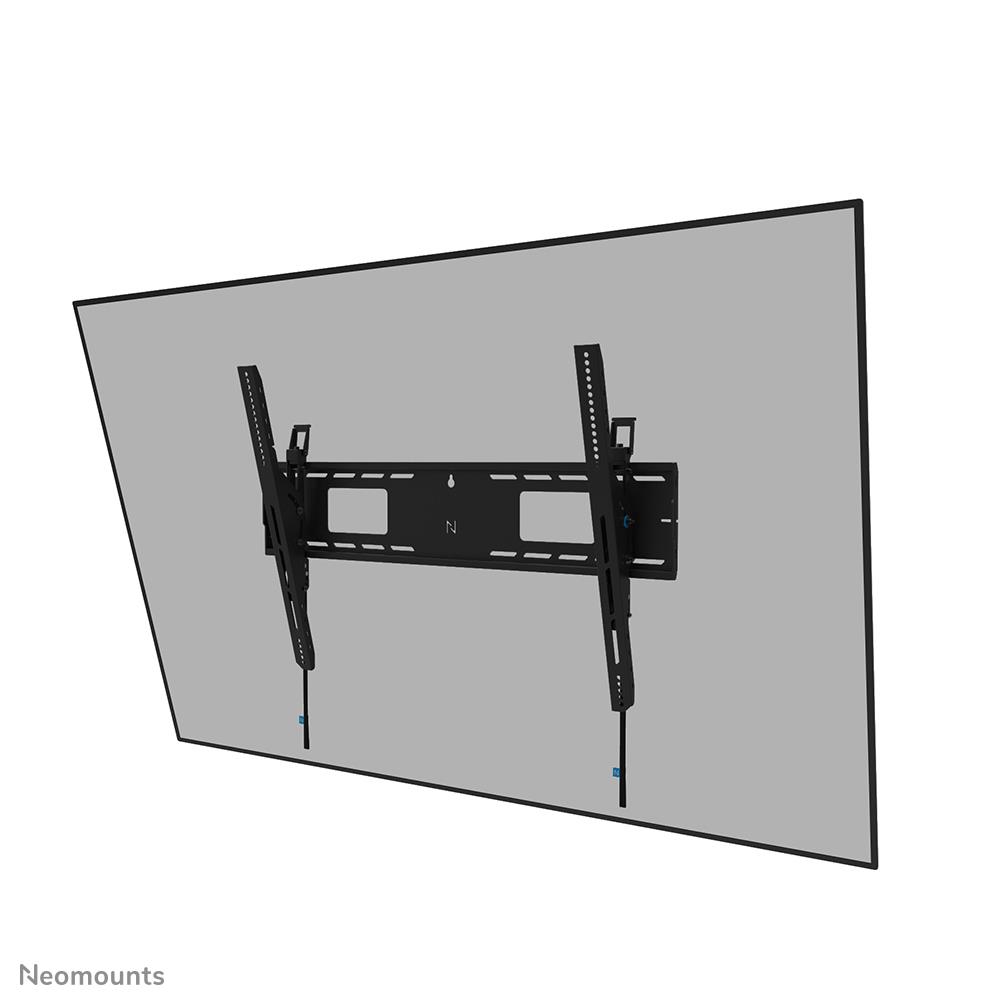

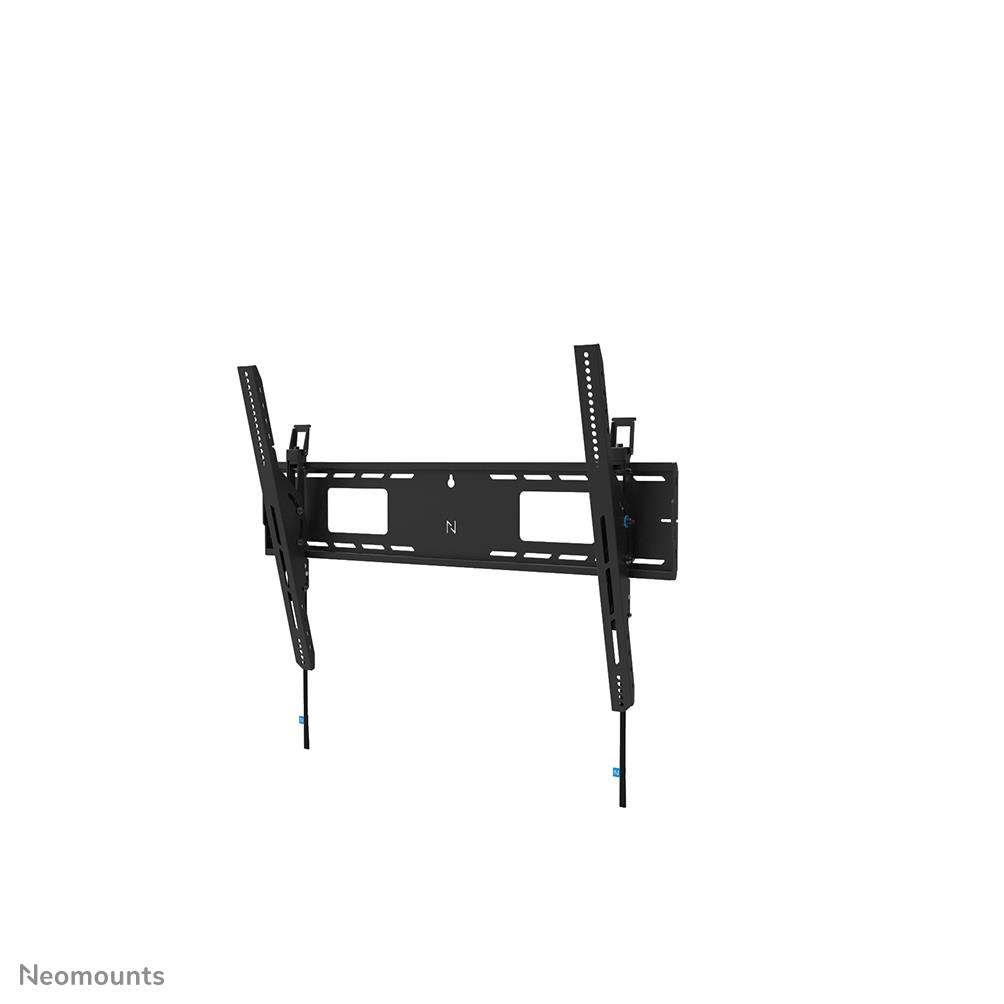

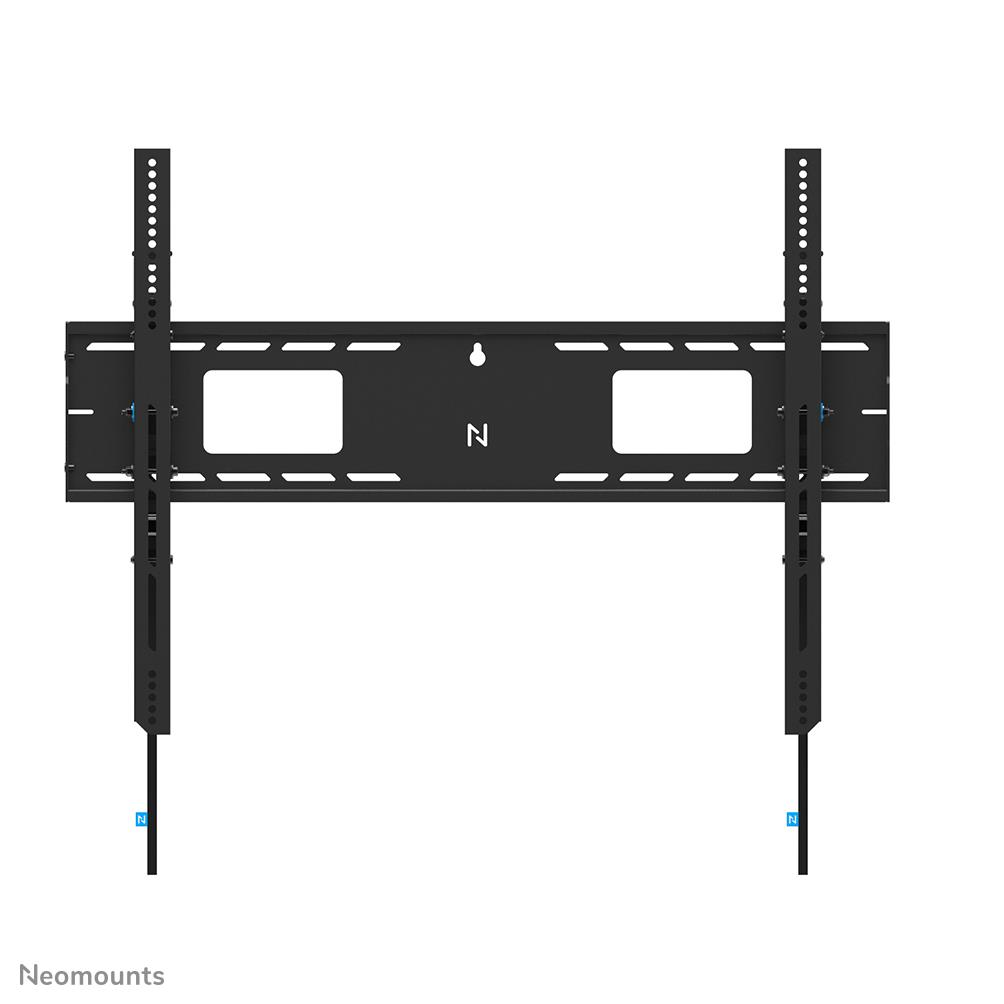

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

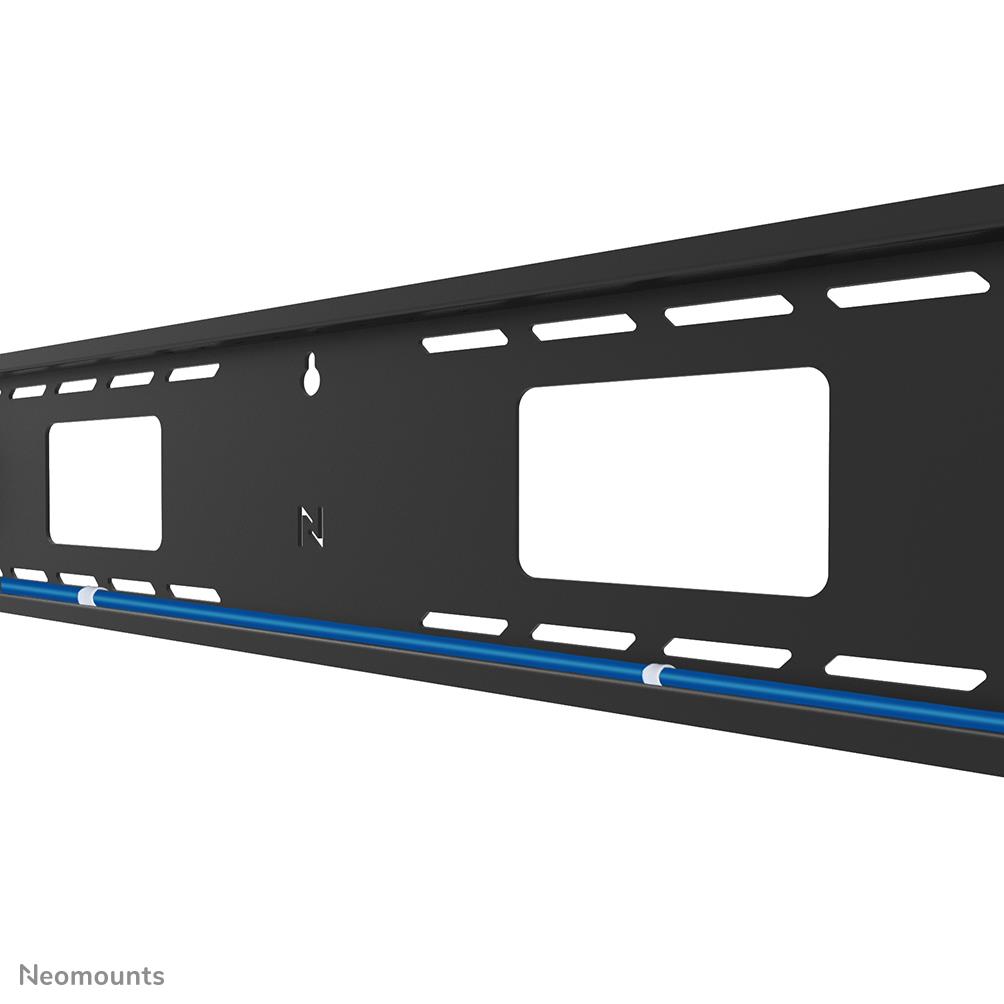

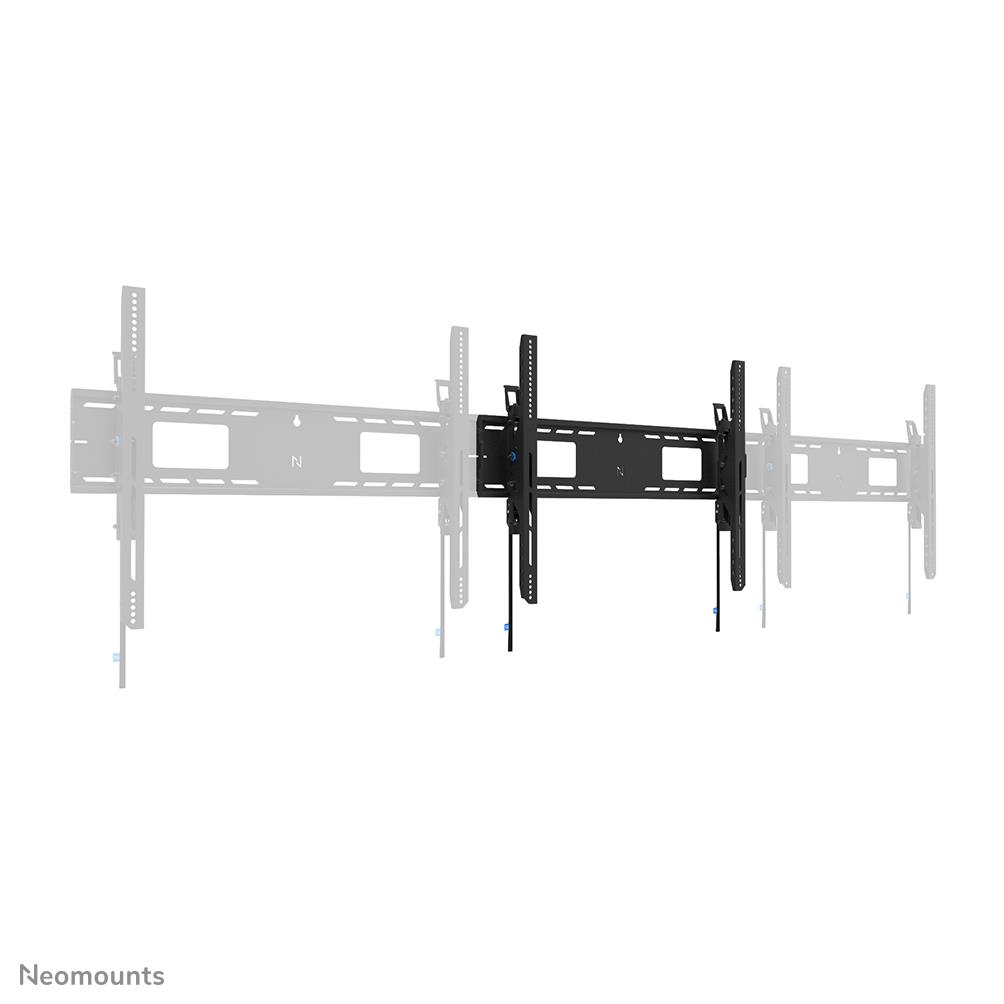

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

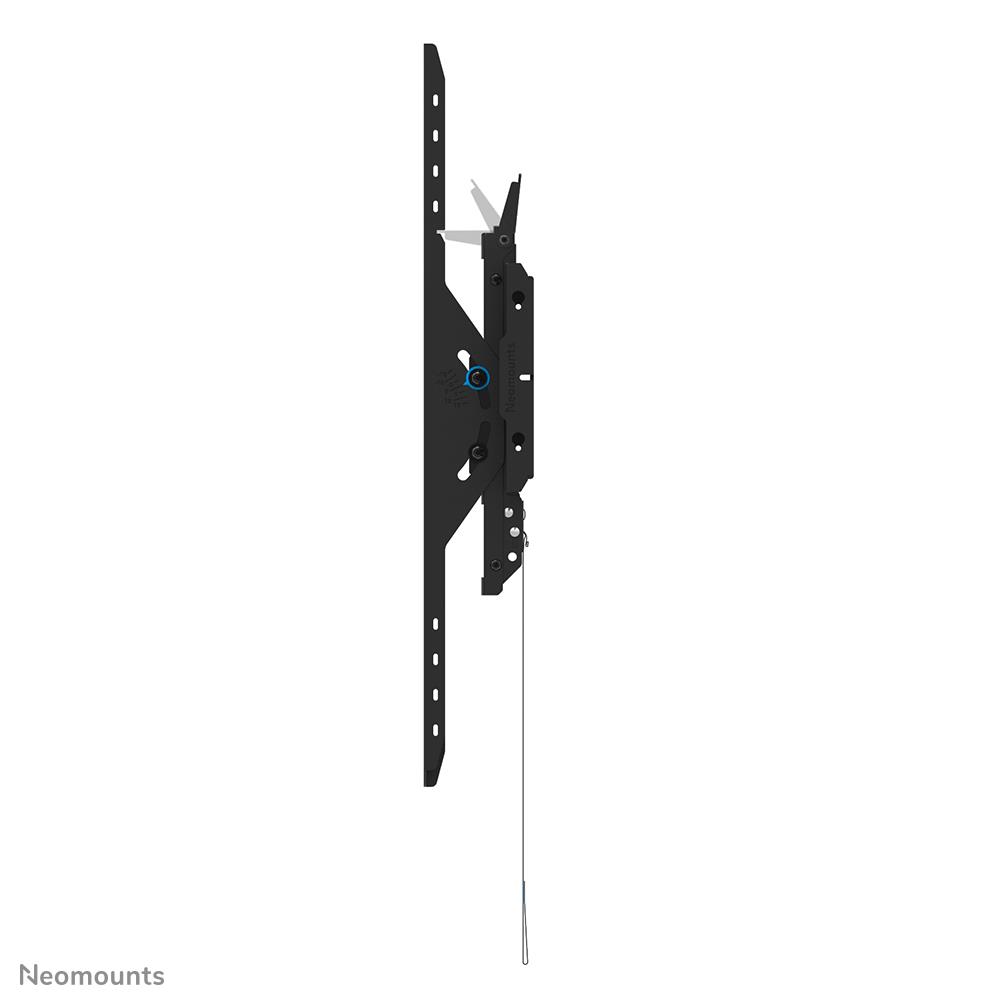

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

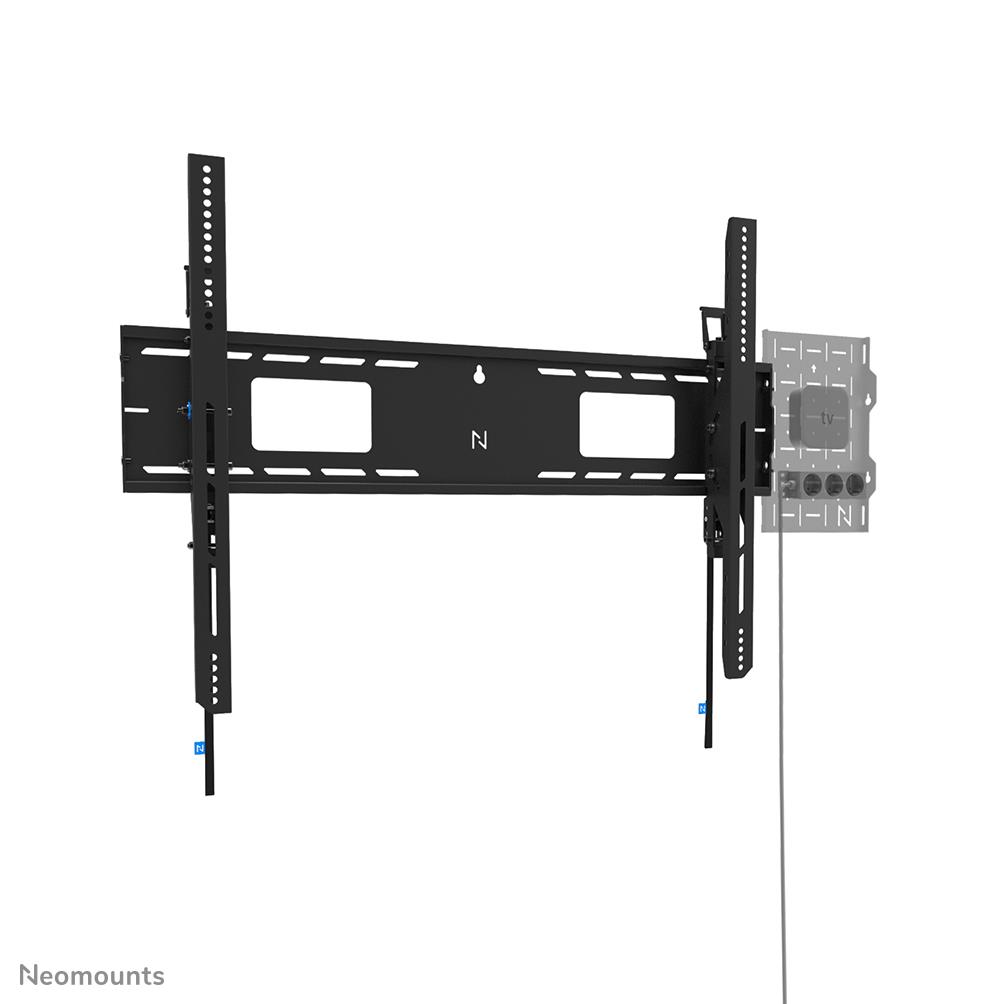

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
General
| Unit Calculated Weight | 8.5 kg |
| Unit Calculated Volume | 0.02319 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Neomounts WL35-750BL18 Heavy duty wall mount 55-98" - tilt - lockable - fast installation - TÜV. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 - 10 mm, Tilt angle range: -15 - 15°, Distance to the wall (max): 9.3 cm. Product colour: Black |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.935 |
| Unit Box Width | 0.21 |
| Model | WL35-750BL18 |
Mounting
| Maximum screen size | 98 " |
| Maximum VESA mount | 800 x 600 mm |
| Maximum weight capacity | 125 kg |
| Maximum weight capacity (per display) | 125 kg |
| Minimum screen size | 55 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/500 x 500/600 x/600 x 200/600 x 300/600 x 400/600 x 500 mm |
Ergonomics
| Cable management | Yes |
| Distance to the wall (max) | 93 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Padlock not included |
Weight & dimensions
| Depth | 93 mm |
| Depth (max) | 93 mm |
| Height | 684 mm |
| Weight | 6800 g |
| Width | 886 mm |
Packaging data
| Package depth | 102 mm |
| Package height | 209 mm |
| Package weight | 8400 g |
| Package width | 928 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 26300 g |
| Master (outer) case height | 324 mm |
| Master (outer) case length | 227 mm |
| Master (outer) case net weight | 20400 g |
| Master (outer) case width | 946 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 39 pc(s) |
