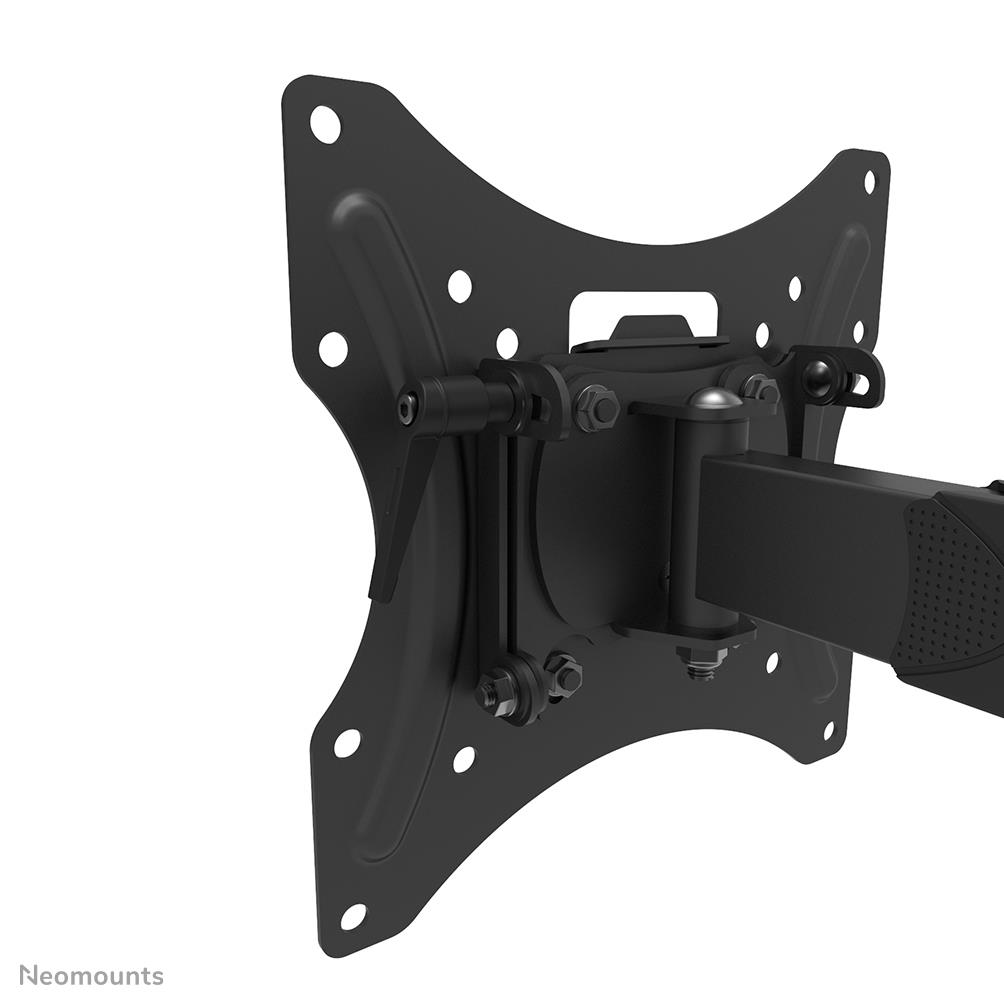

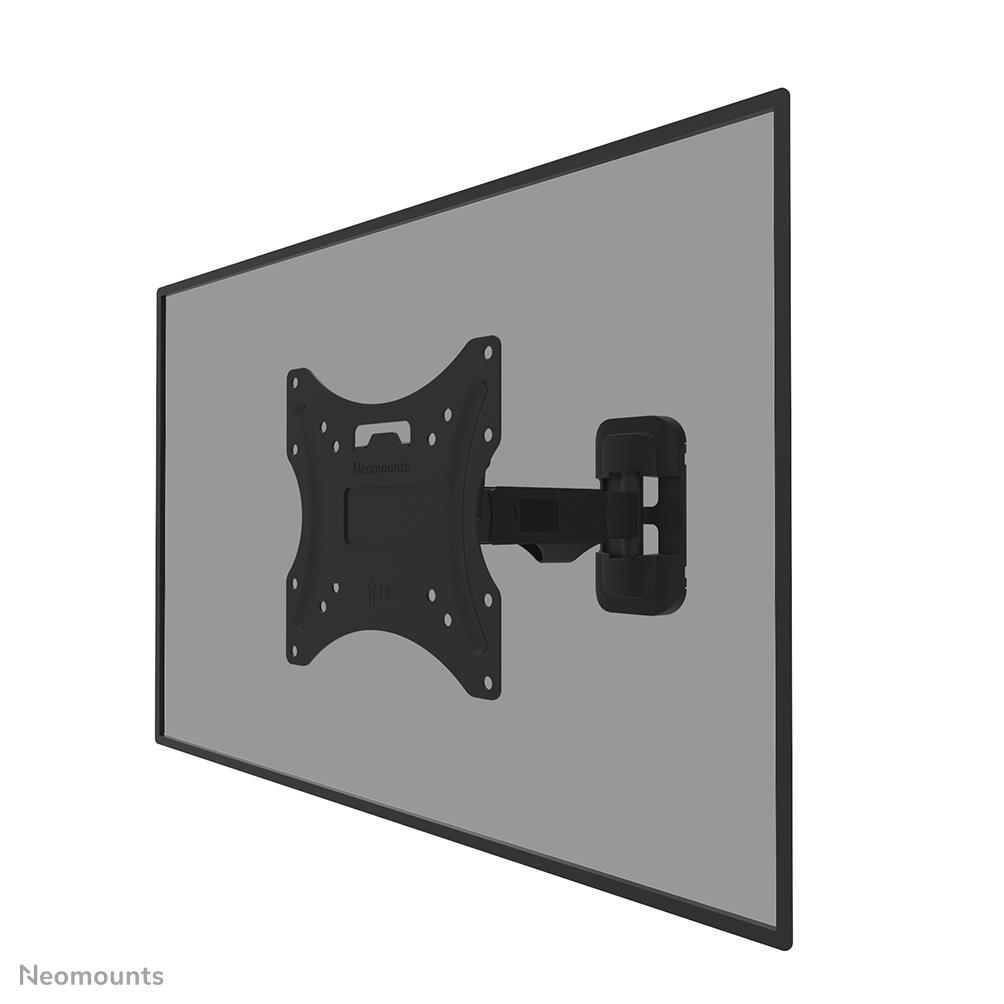

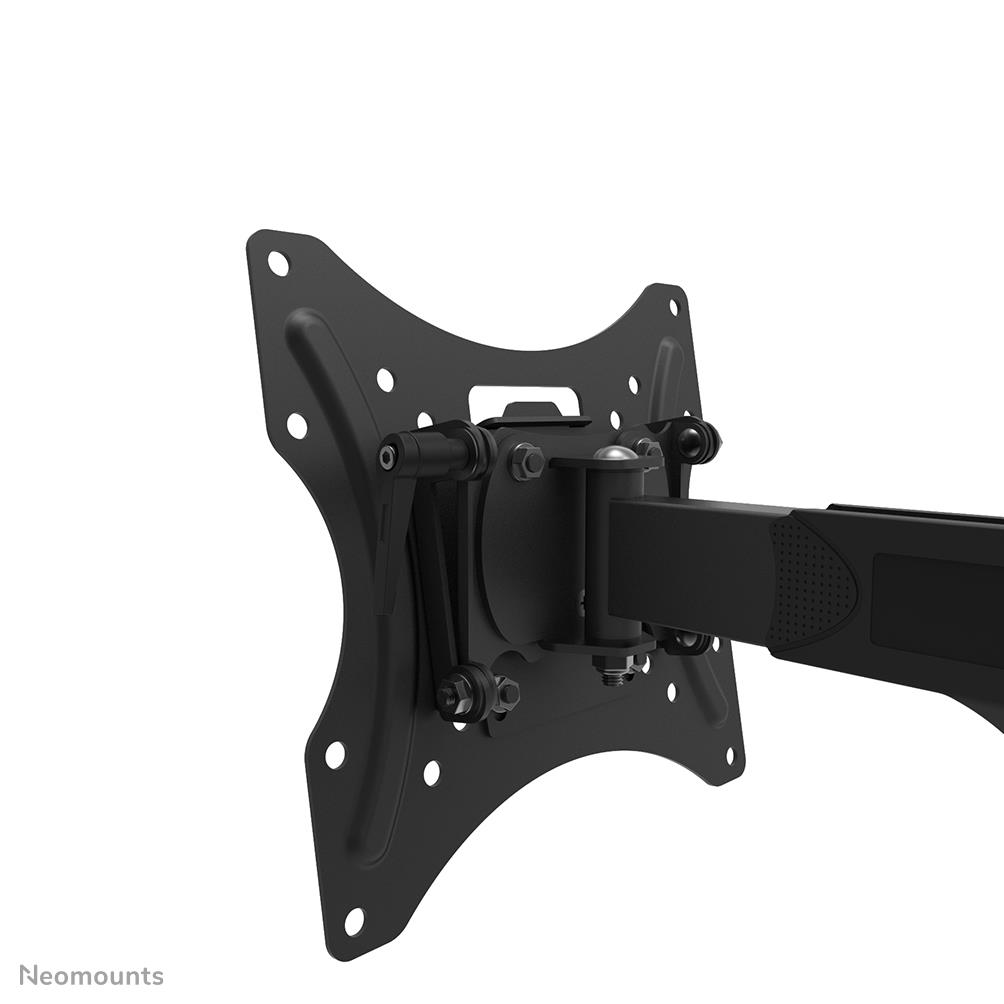

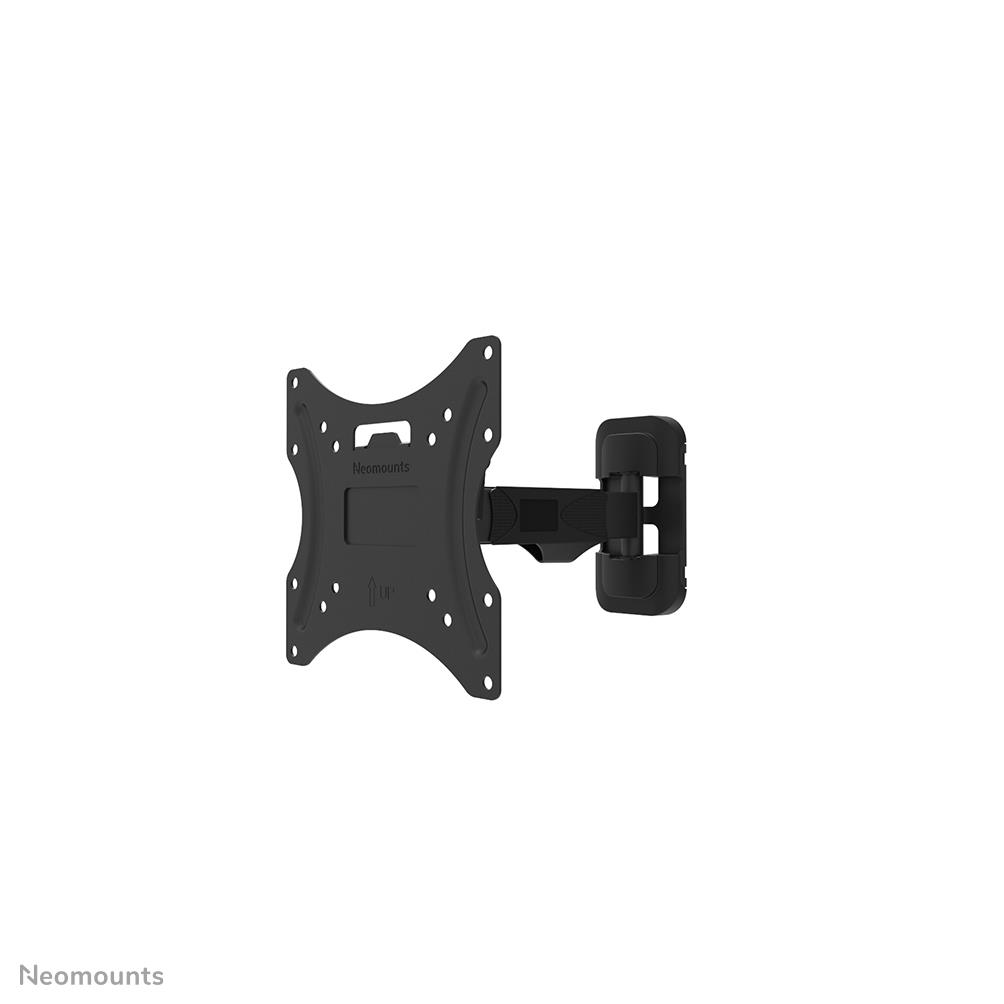

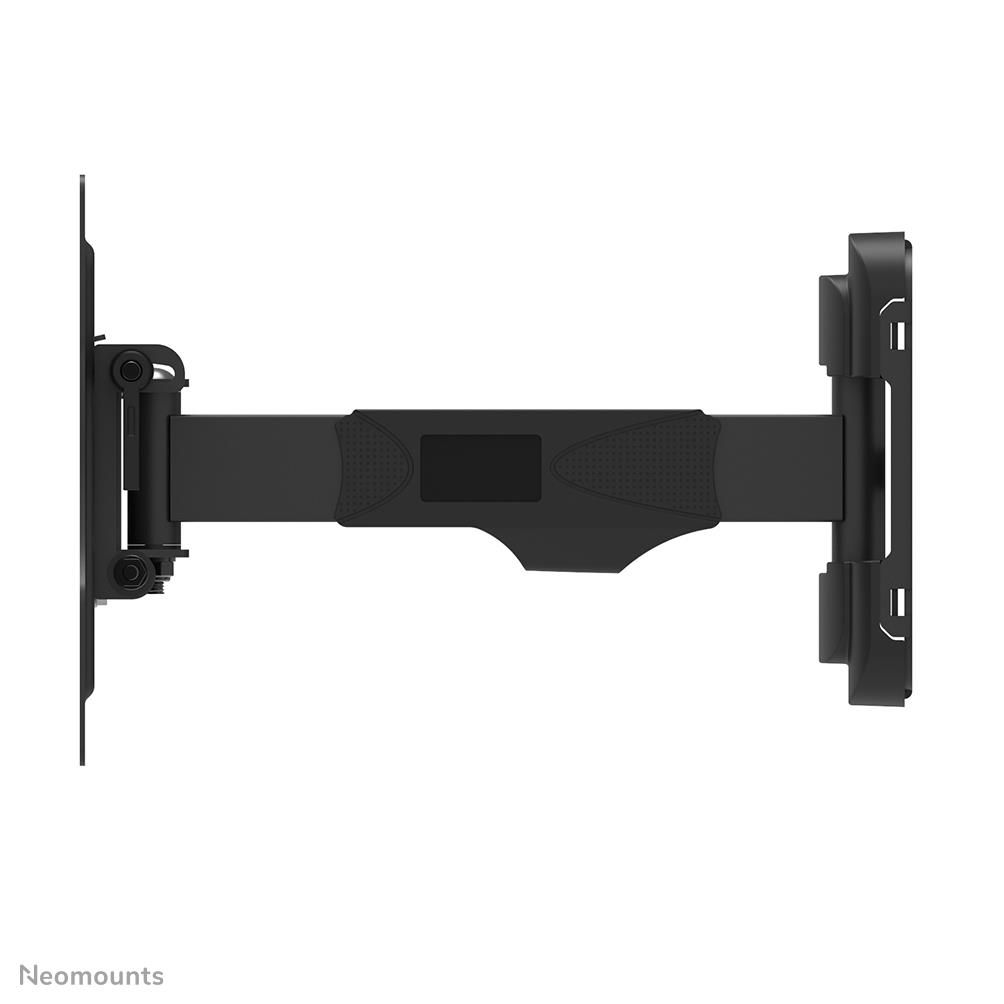

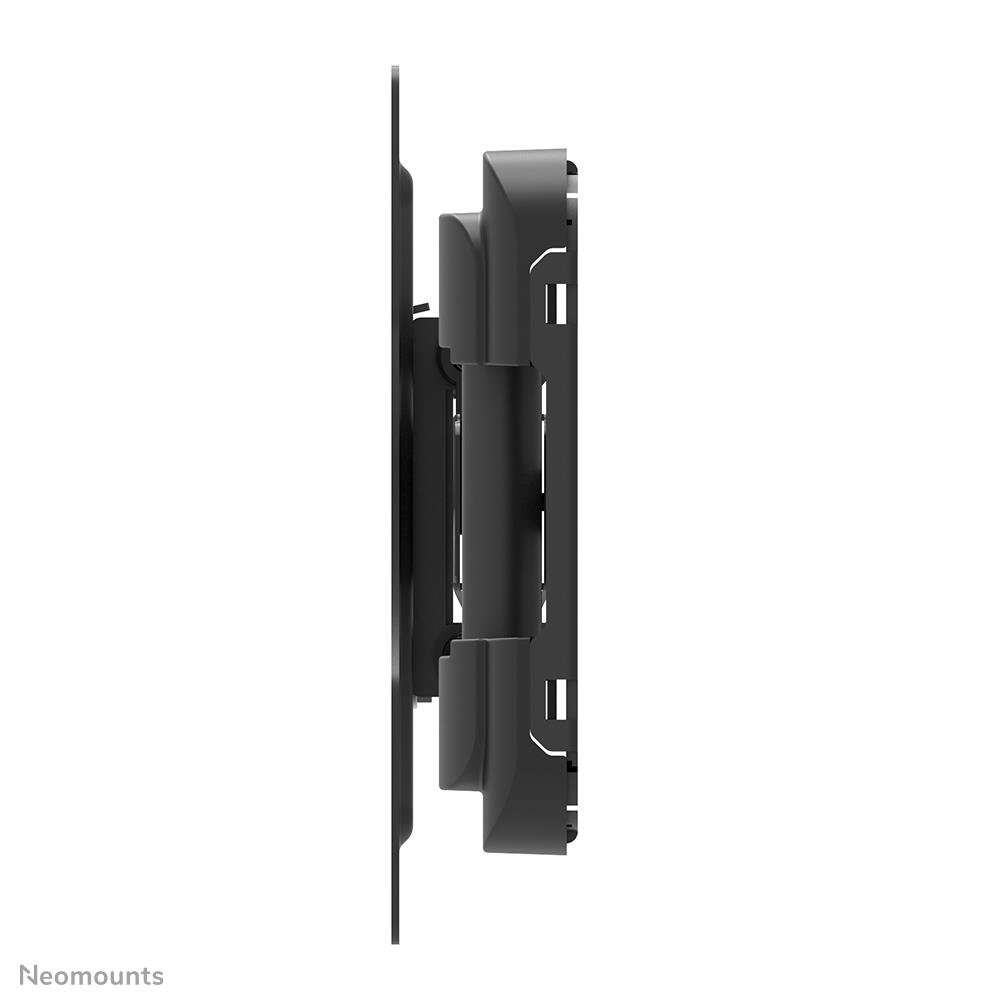

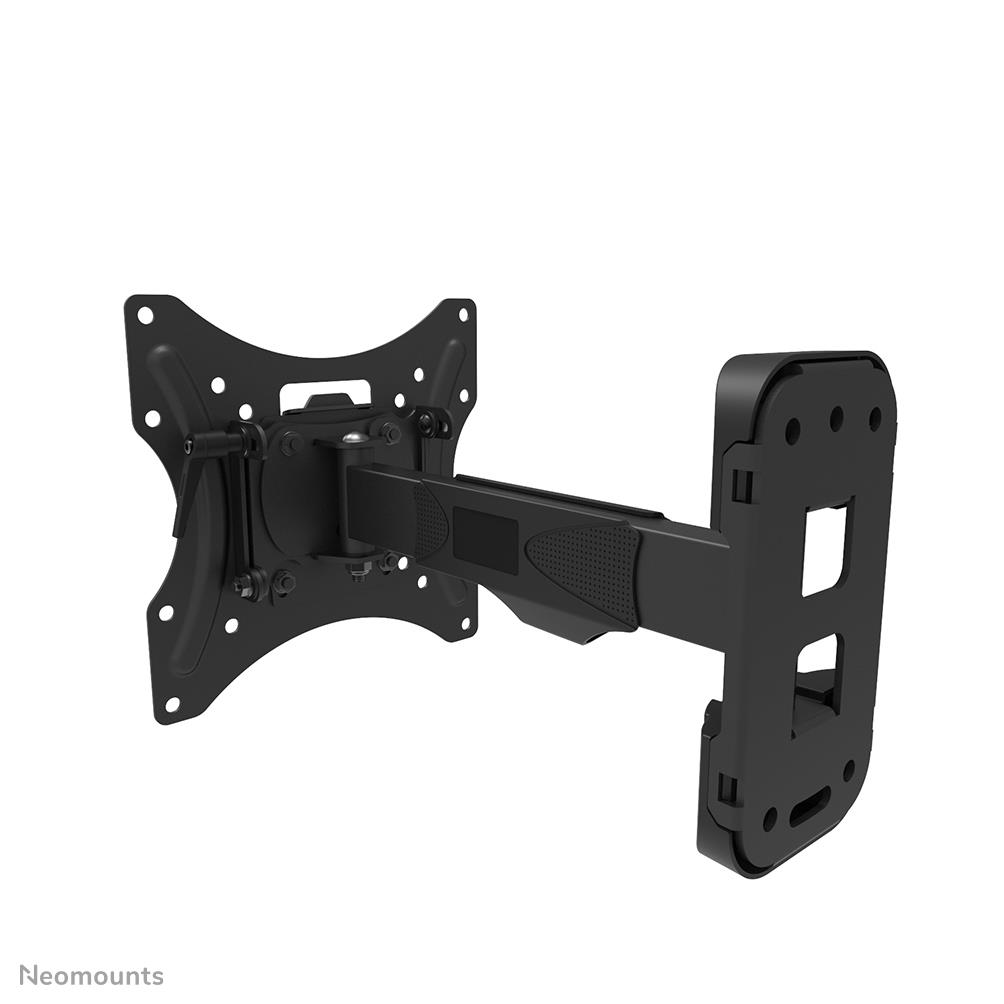

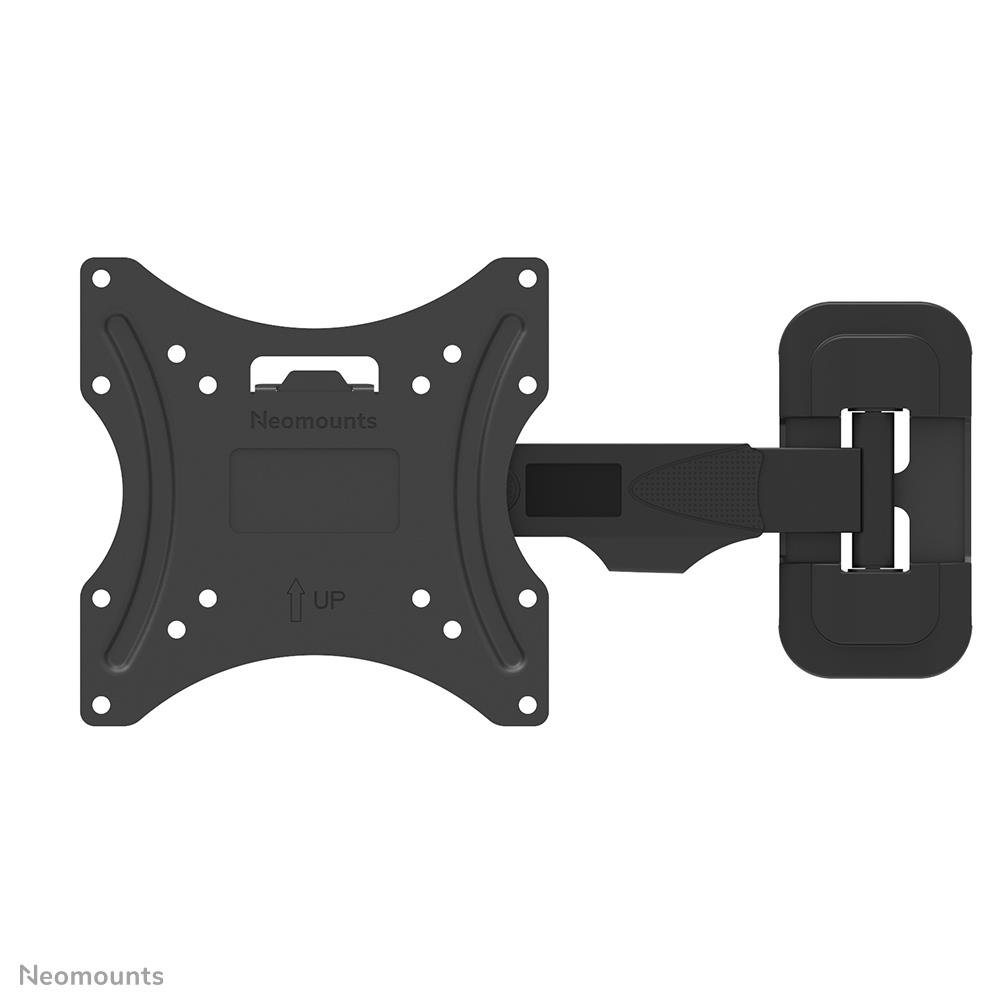

The Neomounts WL40-540BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (30°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 4,6-30,8 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.
The WL40-540BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
General
| Unit Calculated Weight | 2.93 kg |
| Unit Calculated Volume | 0.005692 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL40-540BL12 TV mount wall 32-55" - full motion - easy install. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -2 - 12°, Swivel angle range: 0 - 30°, Angle of rotation: 6°, Distance to the wall (min): 4.6 cm, Distance to the wall (max): 30.8 cm. Product colour: Black |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.055 |
Mounting
| Maximum screen size | 55 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200 mm |
Ergonomics
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Distance to the wall (max) | 308 mm |
| Distance to the wall (min) | 46 mm |
| Height adjustment | No |
| Pivot angle | -3 - 3 ° |
| Rotating | Yes |
| Swivel angle | 30 ° |
| Swivel angle range | 0 - 30 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12 ° |
| Type | Full motion |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Not lockable |
| Package net weight | 3100 g |
| Quantity per pack | 1 pc(s) |
Packaging content
| Mounting kit | Yes |
Weight & dimensions
| Depth | 46 mm |
| Depth (max) | 46 mm |
| Height | 220 mm |
| Weight | 2250 g |
| Width | 220 mm |
Packaging data
| Package depth | 229 mm |
| Package height | 56 mm |
| Package weight | 3100 g |
| Package width | 442 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 16000 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case net weight | 14400 g |
| Master (outer) case width | 462 mm |
| Products per master (outer) case | 5 pc(s) |
| Products per pallet (EU) | 150 pc(s) |
