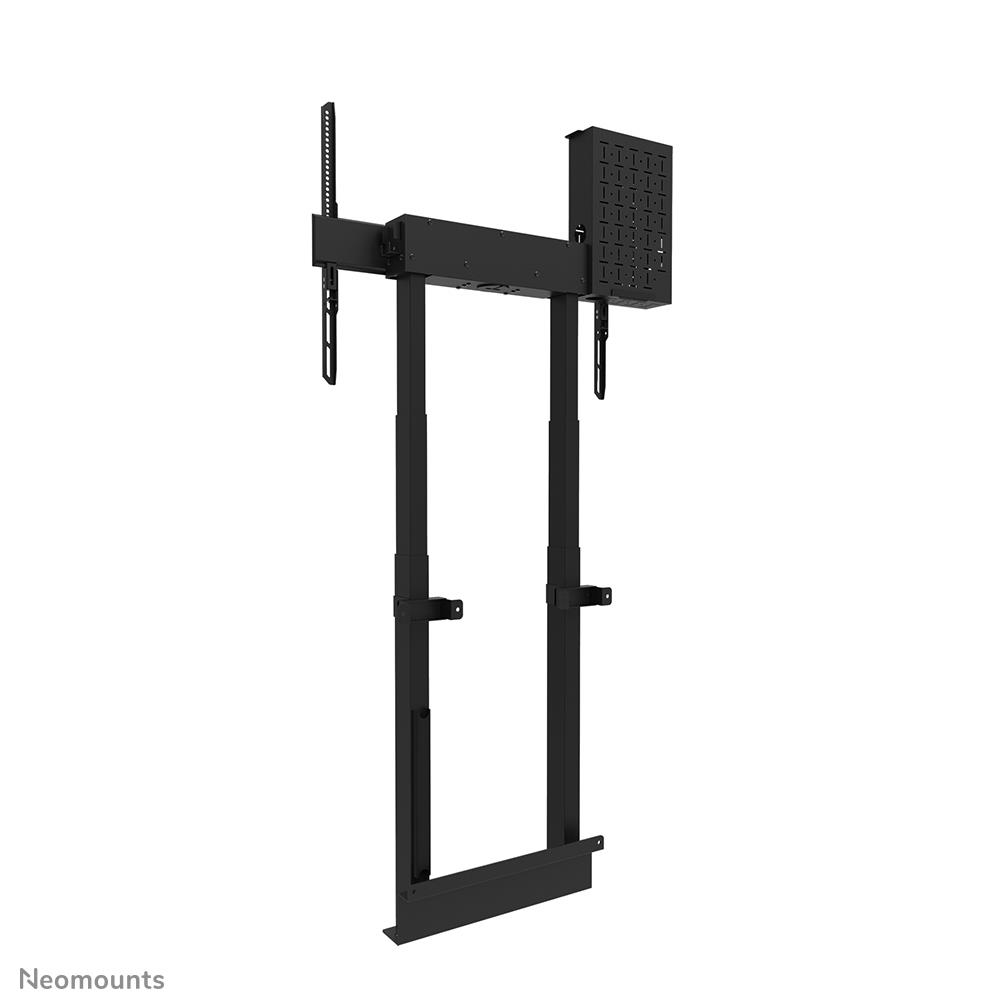

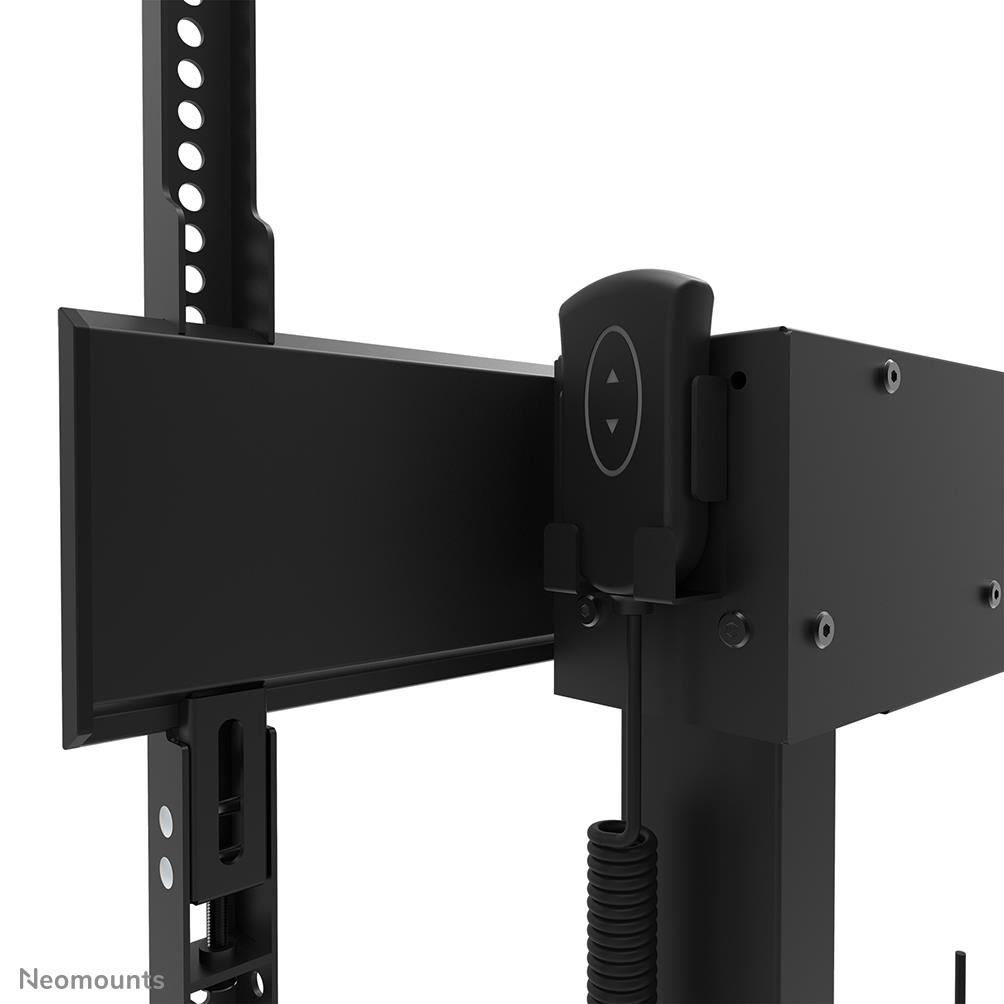

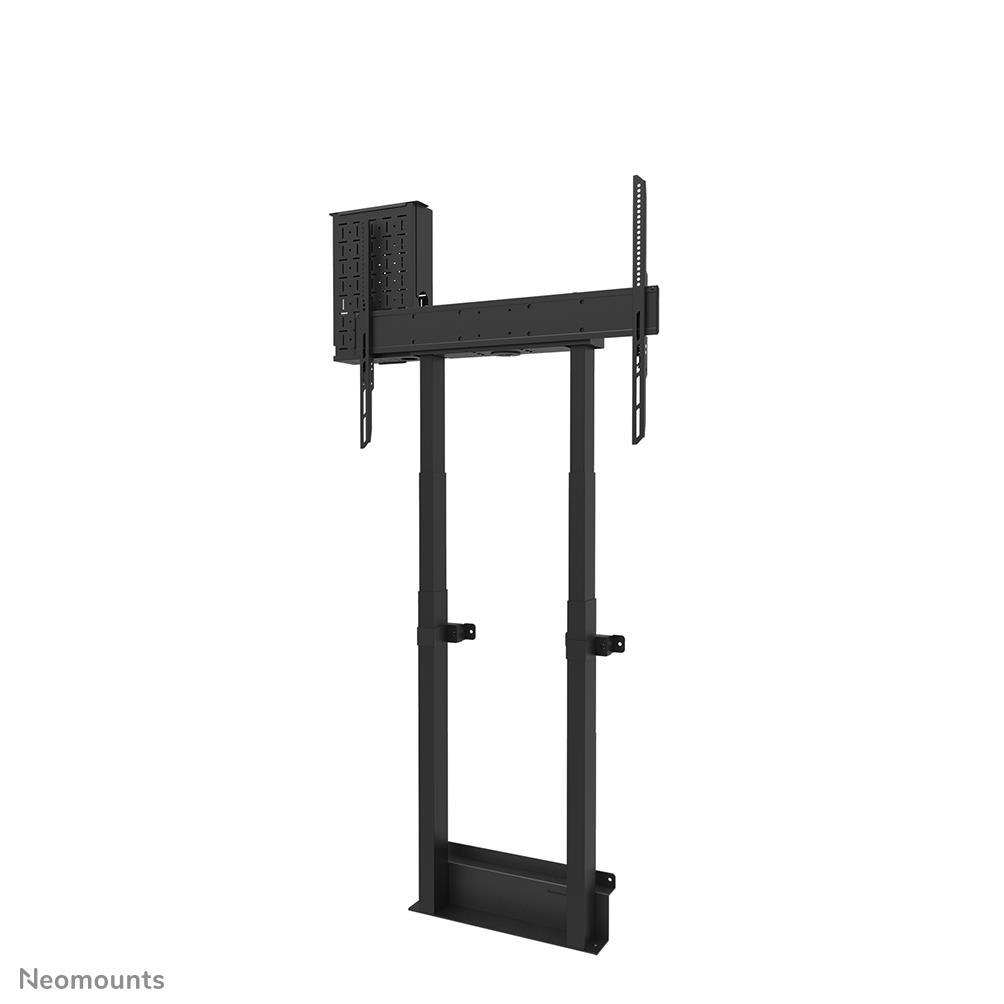

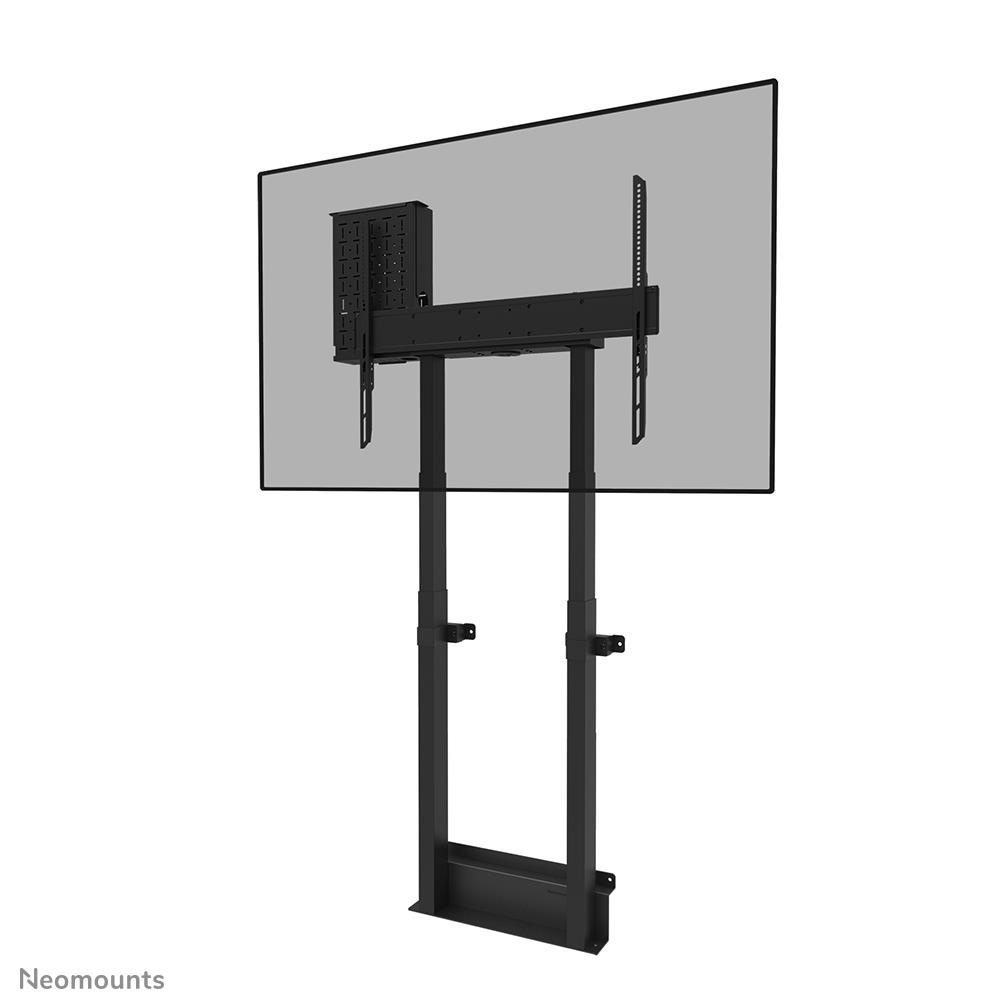

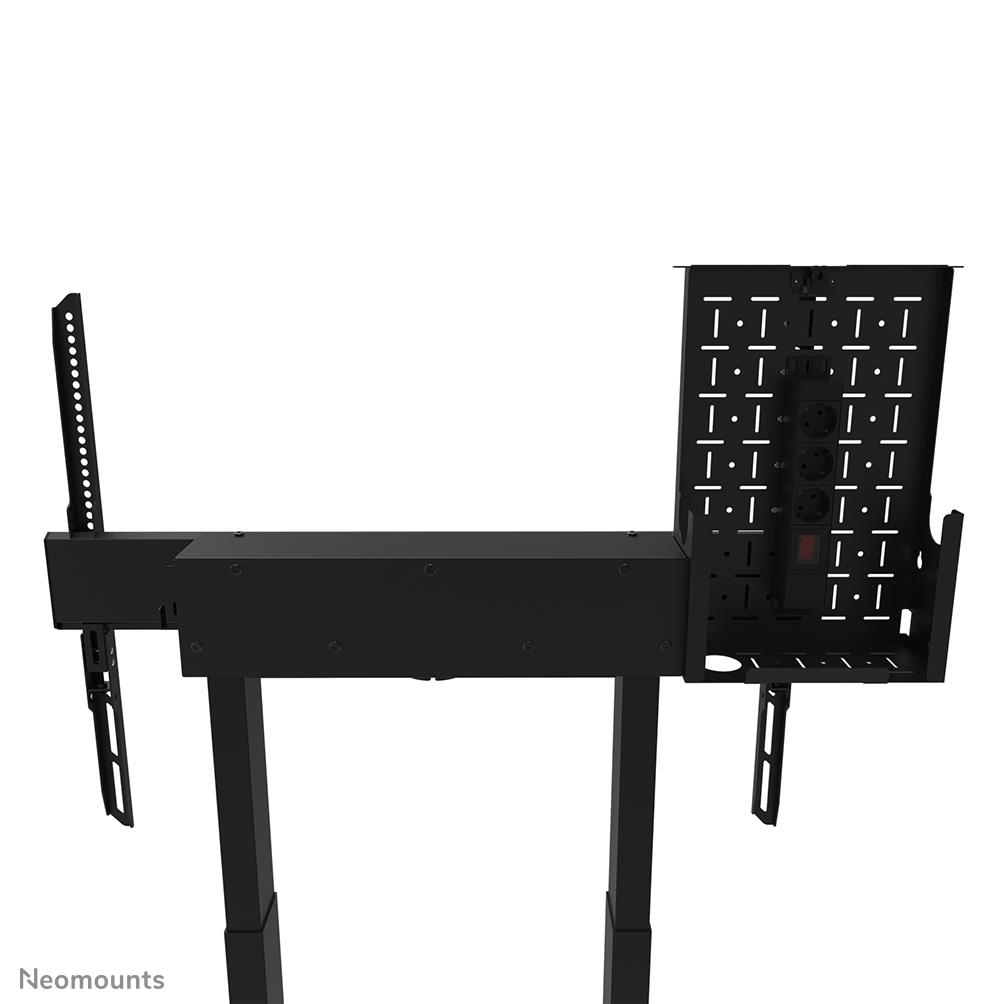

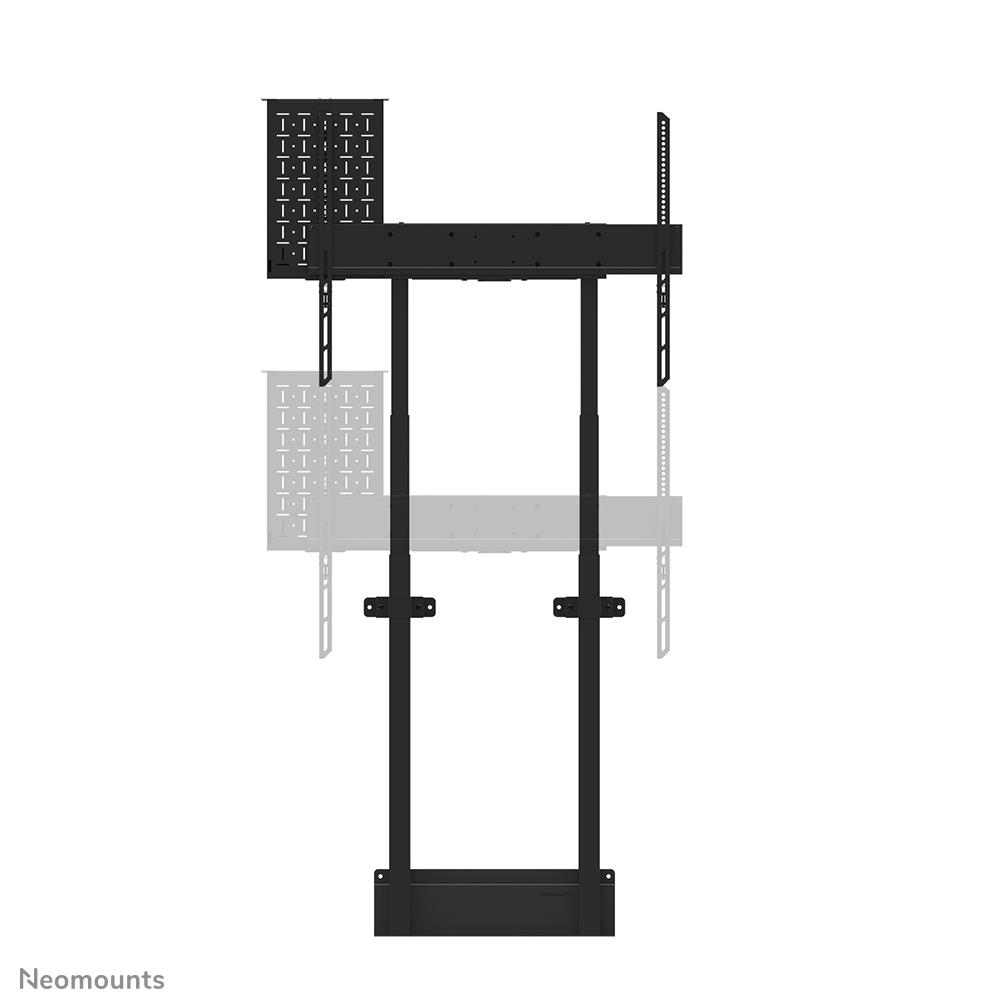

The Neomounts WL55-875BL1 MOVE Lift is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.
The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.

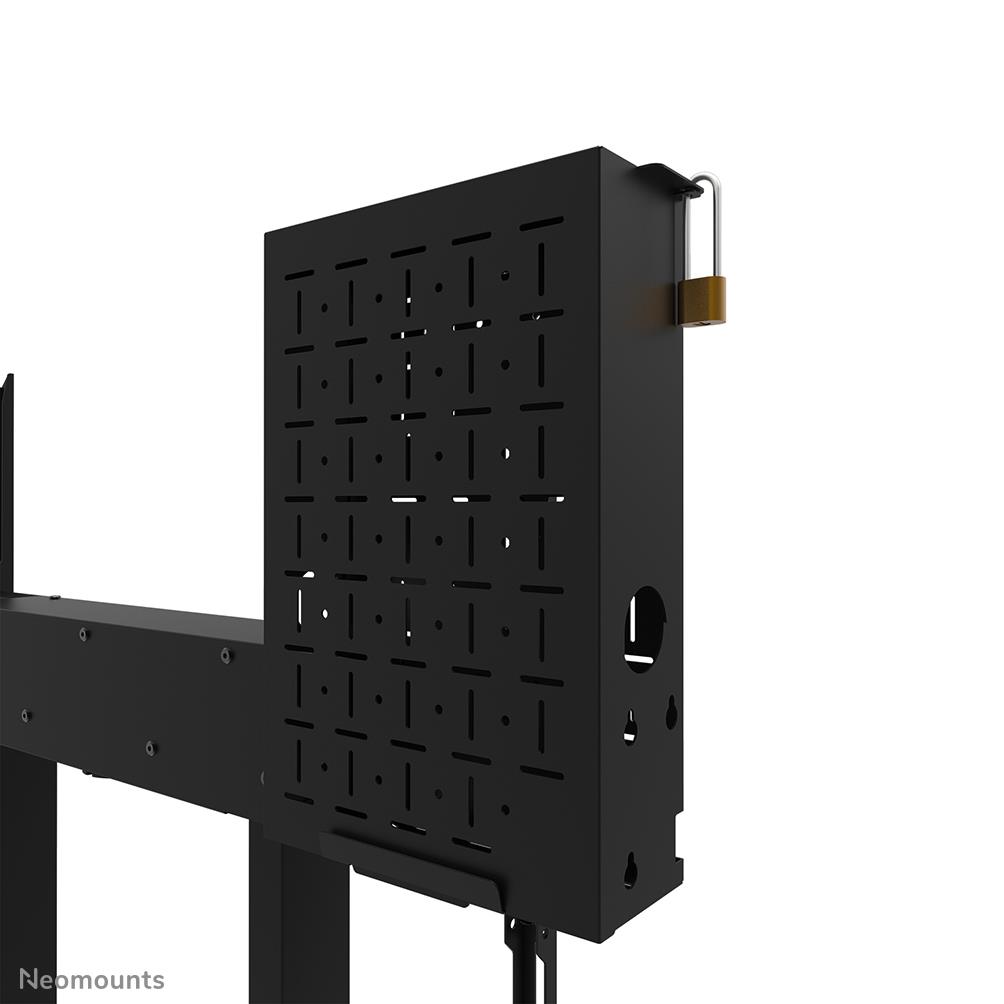

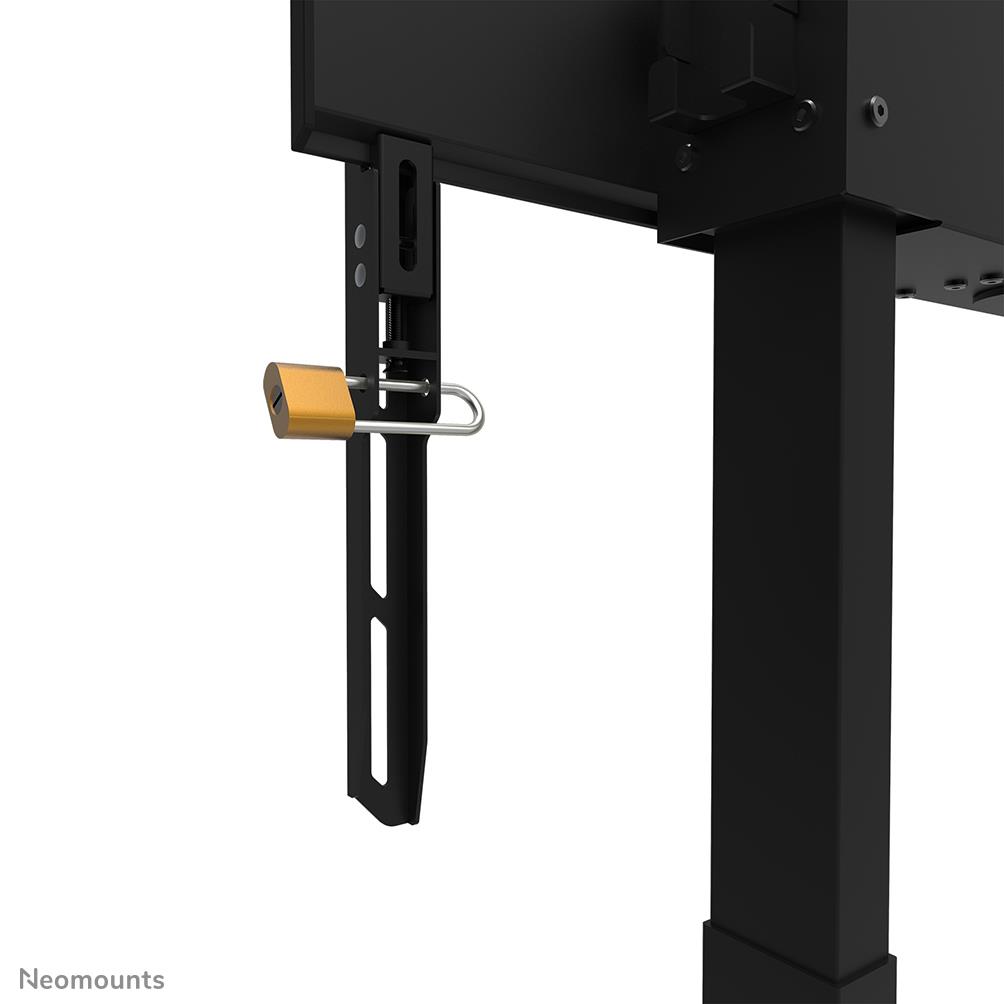

The MOVE Lift wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875BL1 is compactly packed for optimized transportation and storage.
The universal AFL-875BL1 and AV1-875BL videobar & multimedia kits are optionally available and enable the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kits are an adapter for respectively the Logitech Rally Bar (Mini) or Bose Professional VB-S/VB1. Various other accessories are also available for the MOVE Lift series, such as the ADM-875BL2 dual screen adapter or the practical AFP-875BL floor plate.
General
| Unit Calculated Weight | 38.6 kg |
| Unit Calculated Volume | 0.1155 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL55-875BL1 TV floor stand 55-100" - wall - motorised - TÜV. Maximum weight capacity: 110 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 980 - 1630 mm, Distance to the wall (max): 17.2 cm. Product colour: Black |
| Unit Box Height | 0.615 |
| Unit Box Length | 1.105 |
| Unit Box Width | 0.17 |
| Model | WL55-875BL1 |
Mounting
| Maximum screen size | 100 " |
| Maximum VESA mount | 800 x 600 mm |
| Maximum weight capacity | 110 kg |
| Maximum weight capacity (per display) | 110 kg |
| Minimum screen size | 55 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/500 x 500/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/680 x mm |
Ergonomics
| Cable management | Yes |
| Distance to the wall (max) | 172 mm |
| Height adjustment | Yes |
| Height adjustment range | 980 - 1630 mm |
| Height adjustment type | Electric |
| Type | Fixed floor stand |
Design
| Accepts padlock | Yes |
| Housing material | Steel |
| Product colour | Black |
Power
| Motorized | Yes |
| Remotely operated | Yes |
Technical details
| Country of origin | China |
| Lockable | Padlock not included |
| Package net weight | 38000 g |
| Warranty period | 5 year(s) |
Weight & dimensions
| Depth | 172 mm |
| Depth (max) | 172 mm |
| Height | 1965 mm |
| Weight | 33900 g |
| Width | 888 mm |
Packaging data
| Package depth | 166 mm |
| Package height | 1104 mm |
| Package weight | 38000 g |
| Package width | 604 mm |
Logistics data
| Harmonized System (HS) code | 9403109800 |
| Master (outer) case gross weight | 38000 g |
| Master (outer) case height | 1104 mm |
| Master (outer) case length | 166 mm |
| Master (outer) case net weight | 33900 g |
| Master (outer) case width | 604 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 9 pc(s) |
