- Position your screen perfectly
- Lightweight and maneuverable design
General
| Unit Calculated Weight | 18.9 kg |
| Unit Calculated Volume | 0.0442 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Gembird WM-105ST-01. Maximum weight capacity: 75 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.67 m (105"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 900 x 600 mm. Tilt angle range: 5 - -15°, Swivel angle range: 60 - -60°, Distance to the wall (min): 7 cm, Distance to the wall (max): 63.8 cm. Product colour: Black |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.68 |
| Unit Box Width | 0.325 |
| Model | WM-105ST-01 |
Mounting
| Maximum screen size | 105 " |
| Maximum VESA mount | 900 x 600 mm |
| Maximum weight capacity | 75 kg |
| Maximum weight capacity (per display) | 75 kg |
| Minimum screen size | 50 " |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
Ergonomics
| Cable management | Yes |
| Distance to the wall (max) | 638 mm |
| Distance to the wall (min) | 70 mm |
| Swivel angle | 120 ° |
| Swivel angle range | 60 - -60 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 20 ° |
| Tilt angle range | 5 - -15 ° |
Design
| Product colour | Black |
Technical details
| Compliance certificates | CE/RoHS |
| Country of origin | China |
| Orientation | Landscape |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |

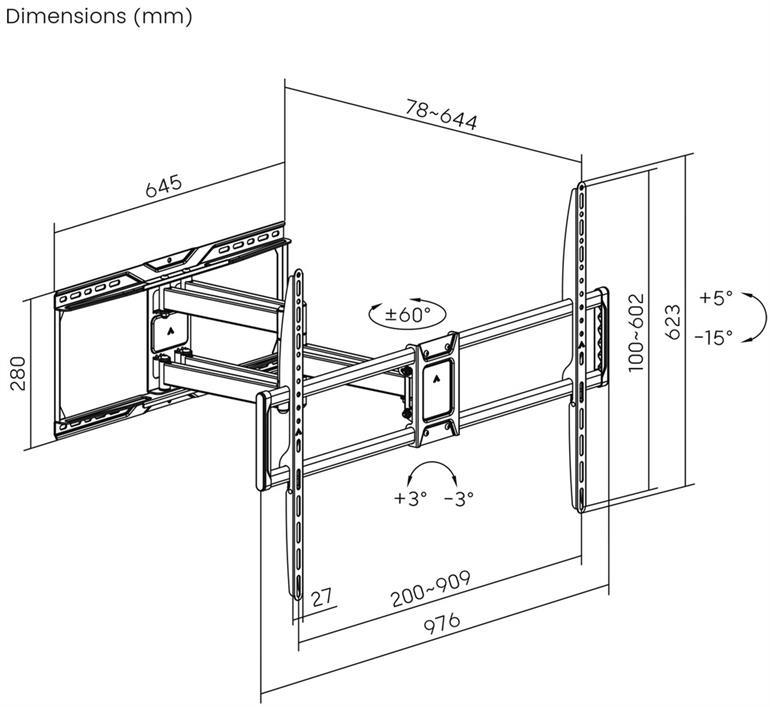

Weight & dimensions
| Depth (max) | 644 mm |
| Depth (min) | 78 mm |
| Height | 623 mm |
| Weight | 17500 g |
| Width | 645 mm |
Packaging data
| Package depth | 675 mm |
| Package height | 310 mm |
| Package type | Box |
| Package width | 95 mm |
| Quantity per pack | 1 pair(s) |
Logistics data
| Customs product code (TARIC) | 8302500000 |
