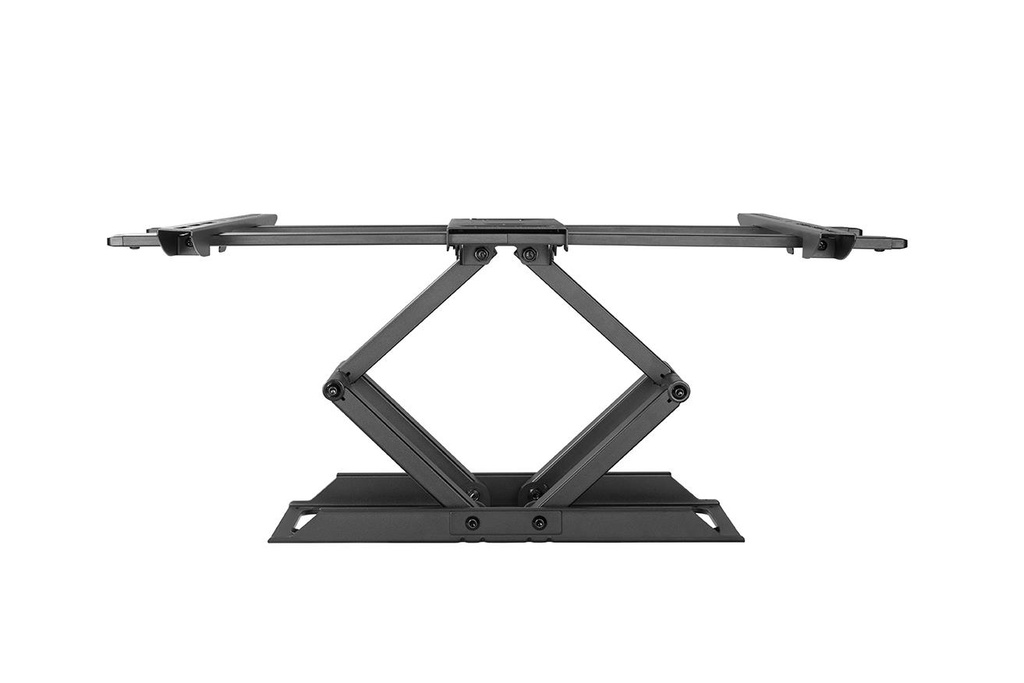

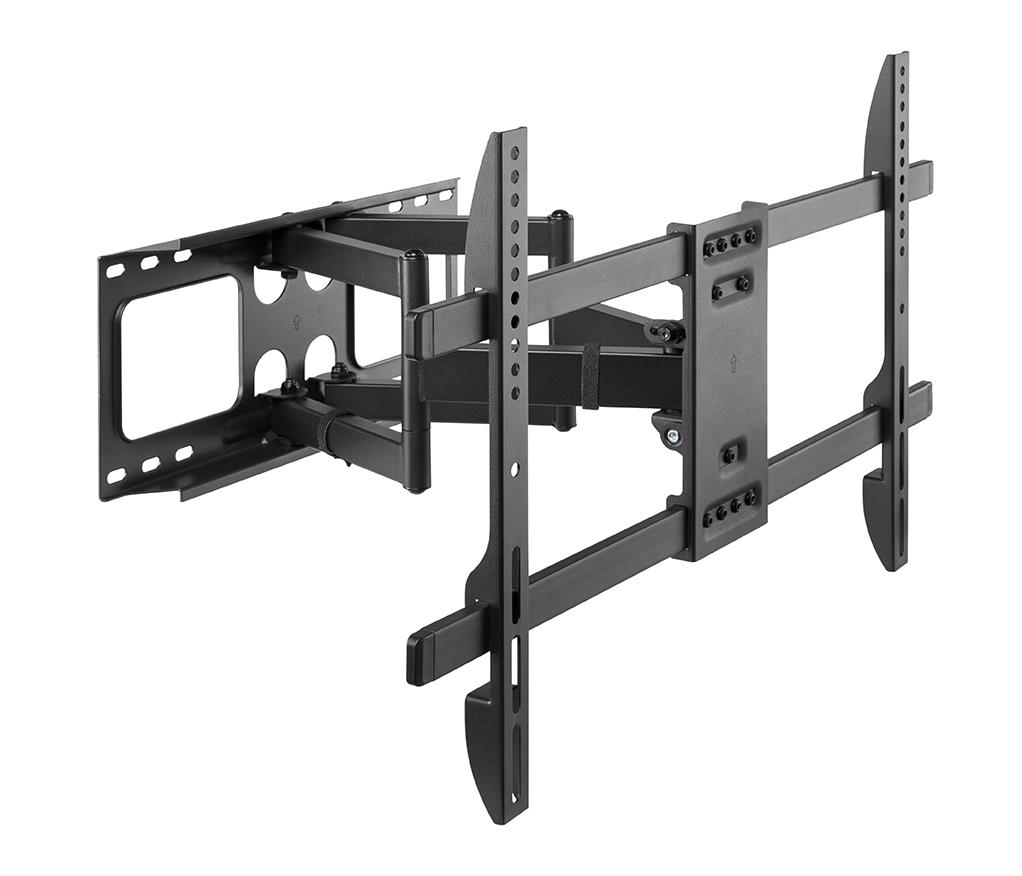

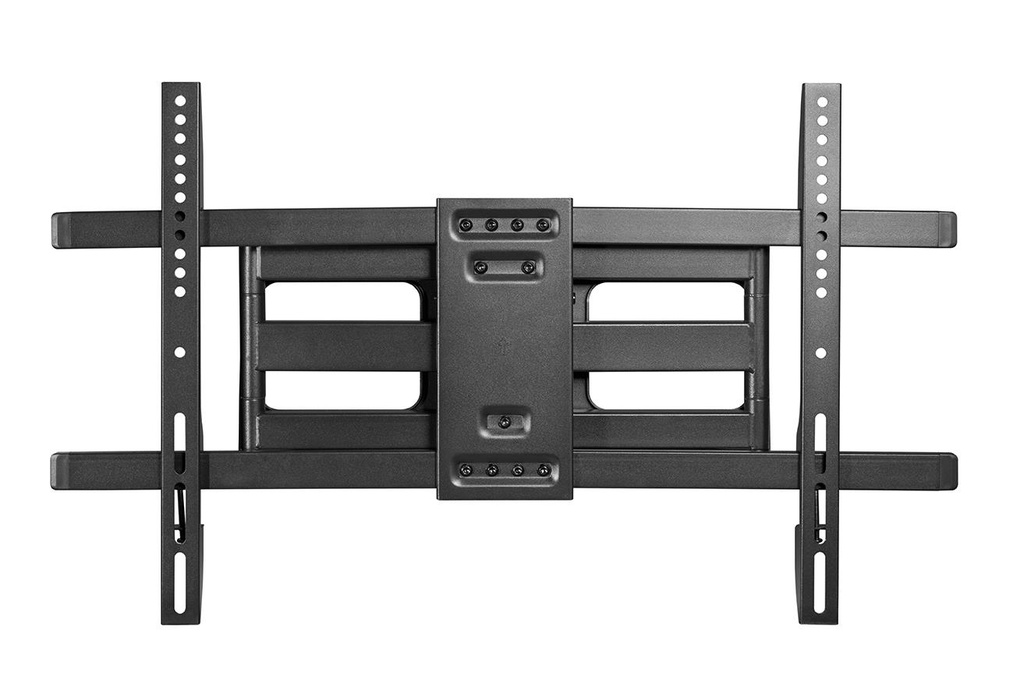

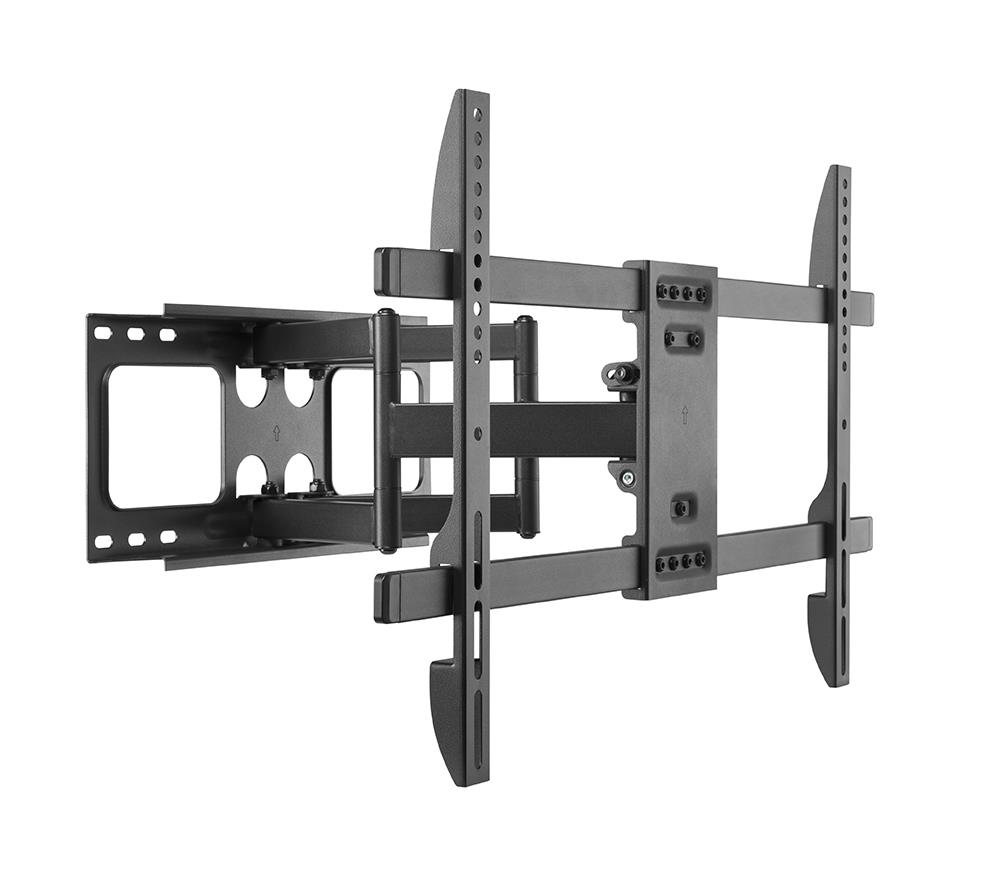

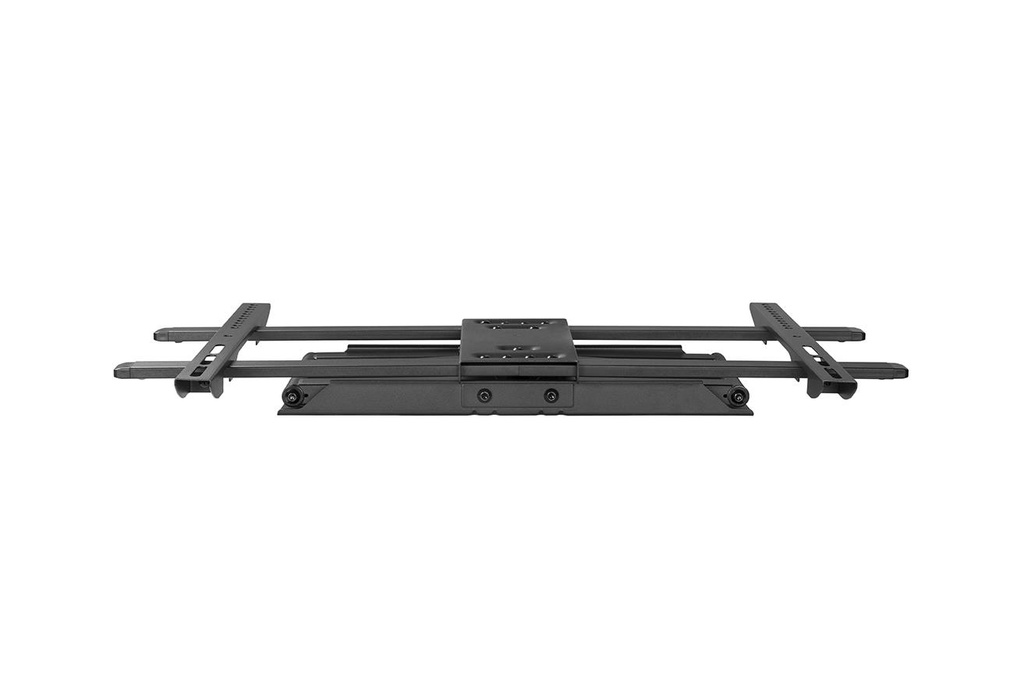

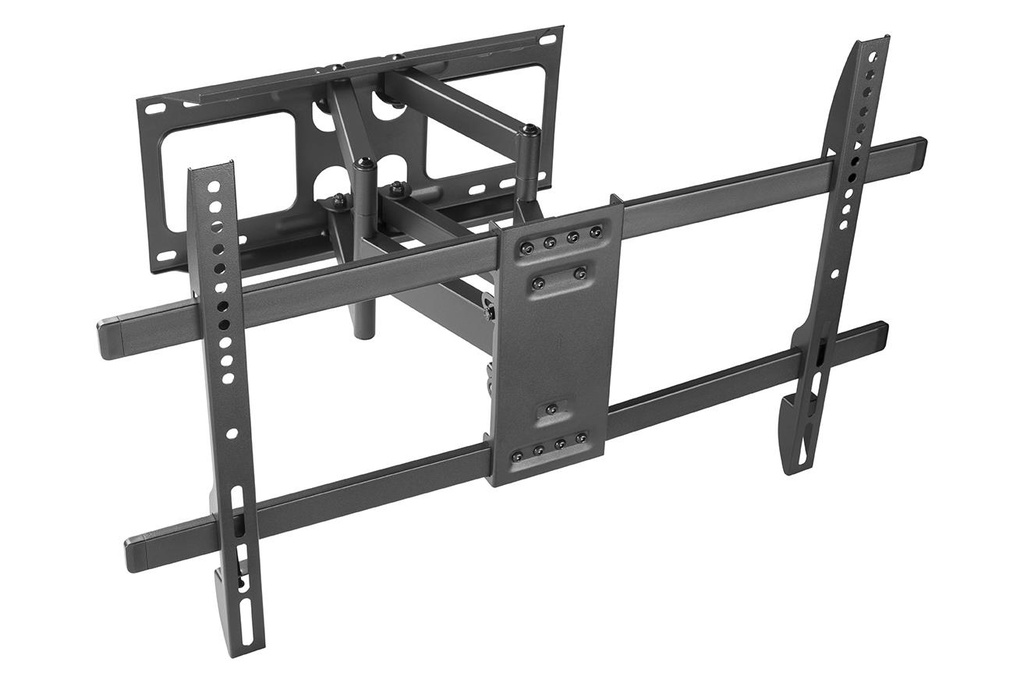

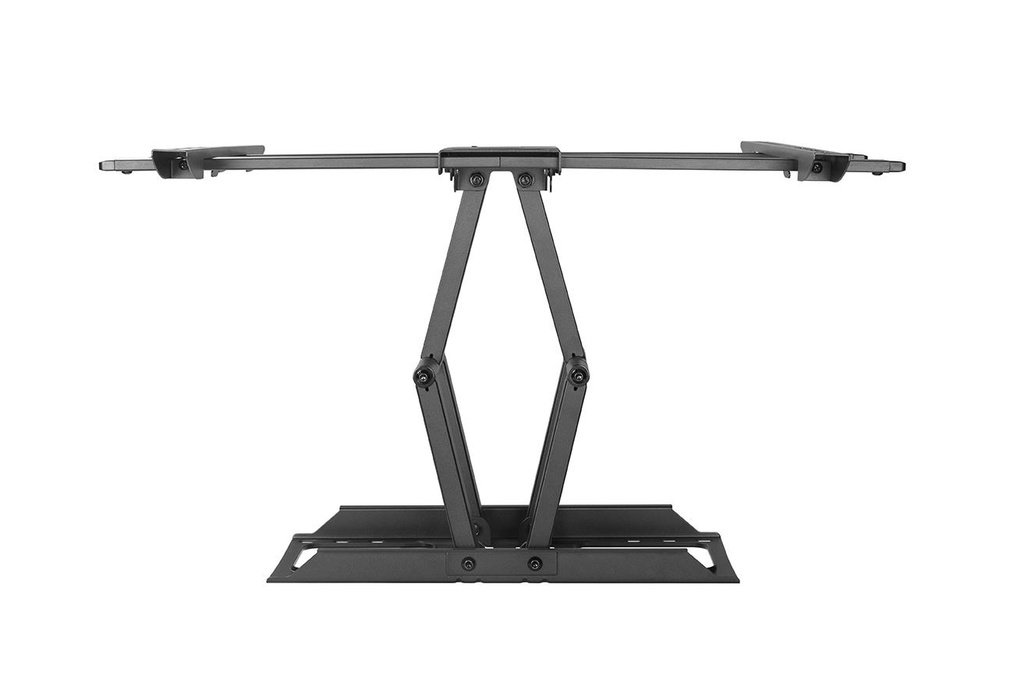

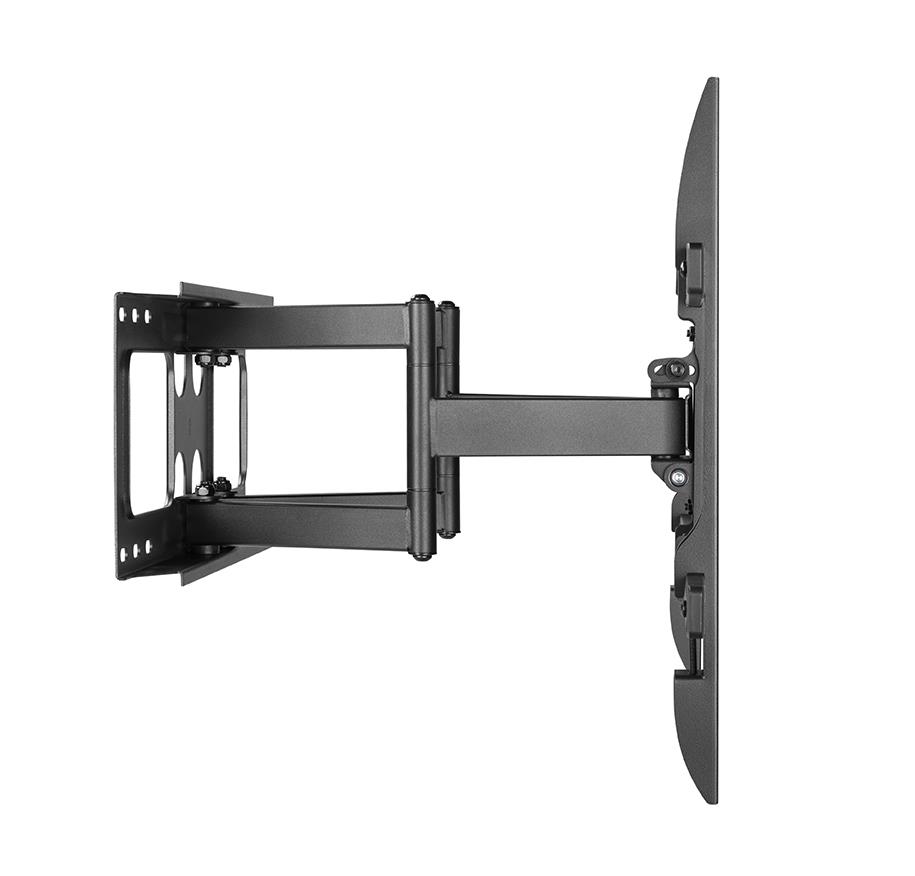

Heavy duty steel LCD screen wall mount
Supports most 37'' - 80'' LCD TV’s
VESA compatible, max. 600 mm x 400 mm
Allows up to 120 degrees swivel and 20 degrees tilting
Distance to wall: 58 - 402 mm
Includes all necessary installation materials
- Position your screen perfectly
- Lightweight and maneuverable design
General
| Unit Calculated Weight | 6.23 kg |
| Unit Calculated Volume | 0.01073 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Gembird WM-80ST-02. Maximum weight capacity: 60 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 - 5°, Swivel angle range: -60 - 60°. Product colour: Black |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.3 |
| Model | WM-80ST-02 |
Mounting
| Maximum screen size | 80 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 60 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400 mm |
Ergonomics
| Adjustable depth | Yes |
| Cable management | Yes |
| Pivot angle | -3 - 3 ° |
| Swivel angle | 60 ° |
| Swivel angle range | -60 - 60 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5 ° |
Design
| Housing material | Plastic/Steel |
| Product colour | Black |
Technical details
| Easy to install | Yes |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
Weight & dimensions
| Depth (max) | 502 mm |
| Depth (min) | 58 mm |
| Height | 402 mm |
| Weight | 5767 g |
| Width | 430 mm |
Packaging data
| Package depth | 440 mm |
| Package height | 65 mm |
| Package type | Box |
| Package weight | 6333 g |
| Package width | 300 mm |
