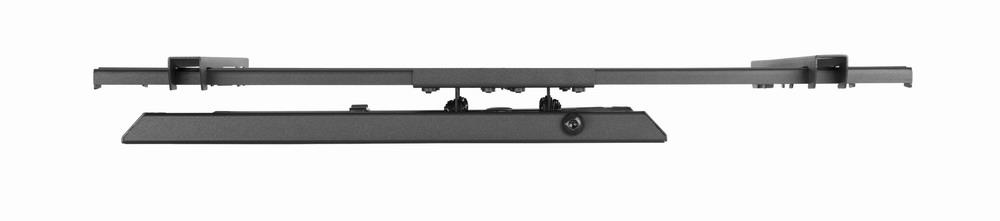

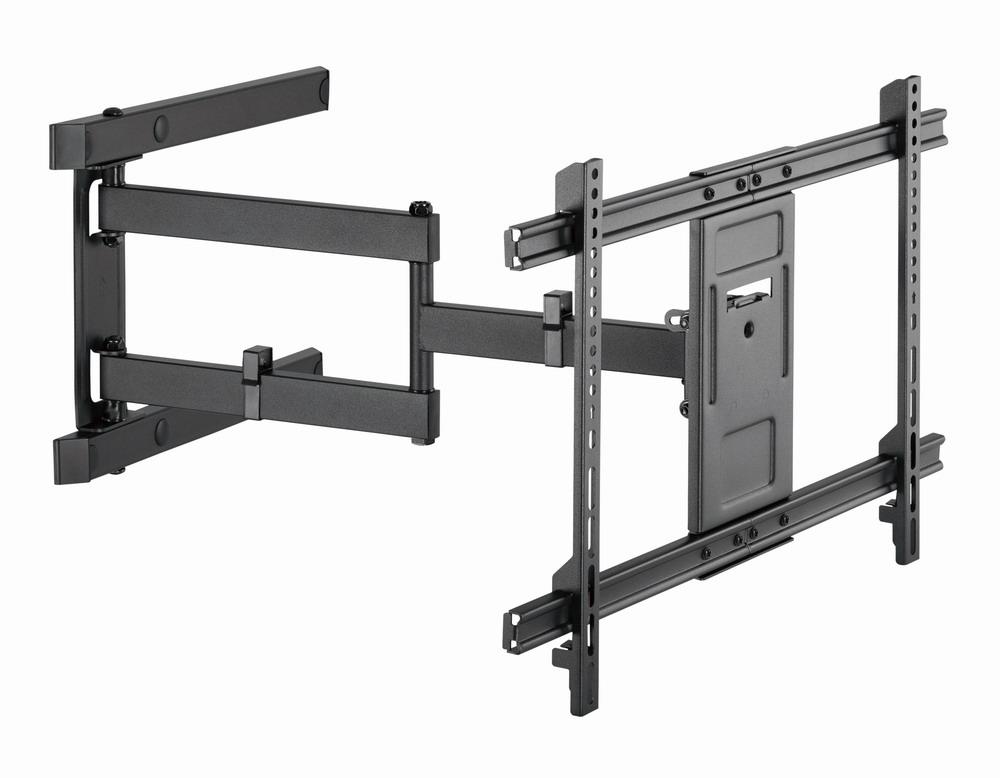

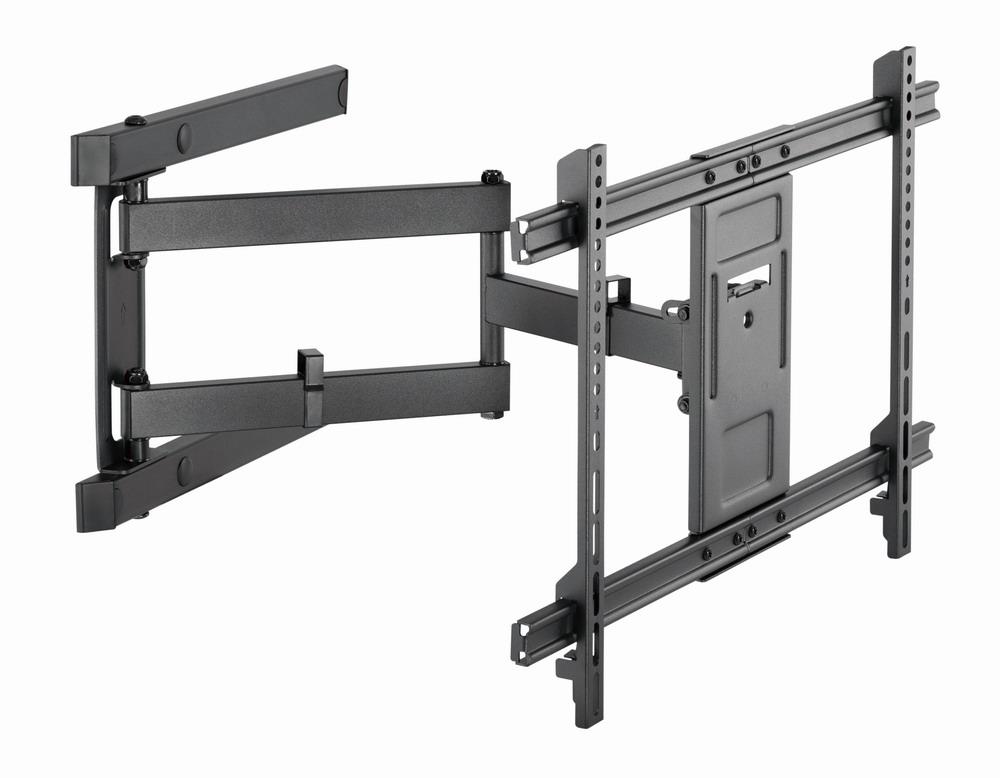

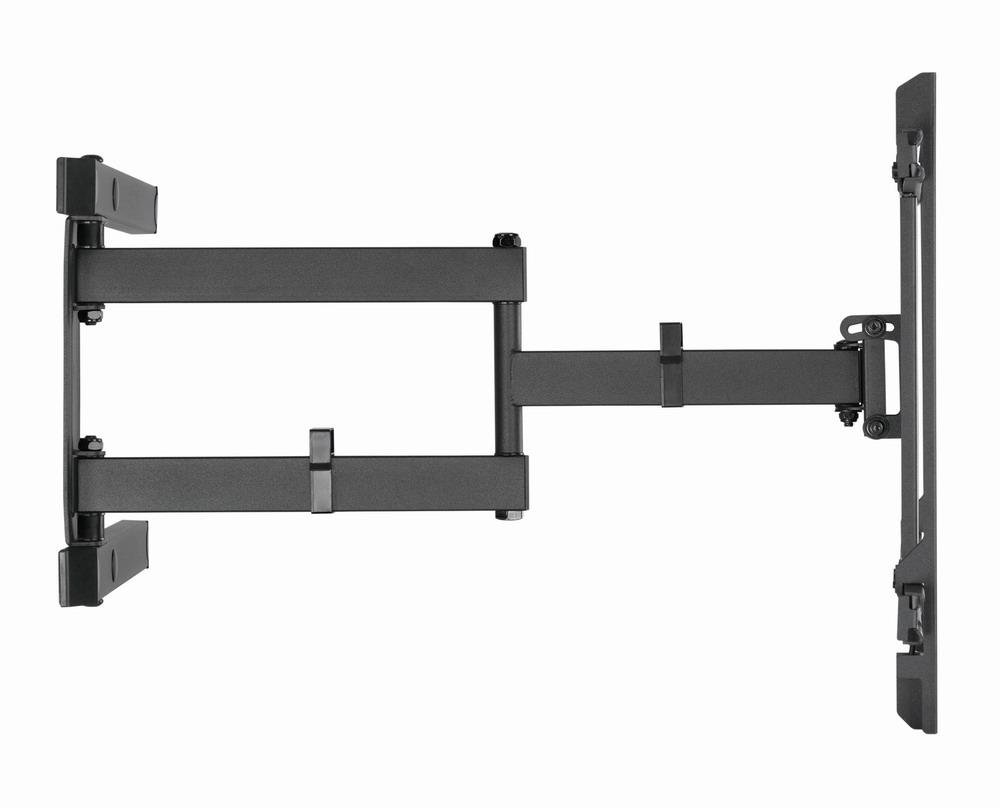

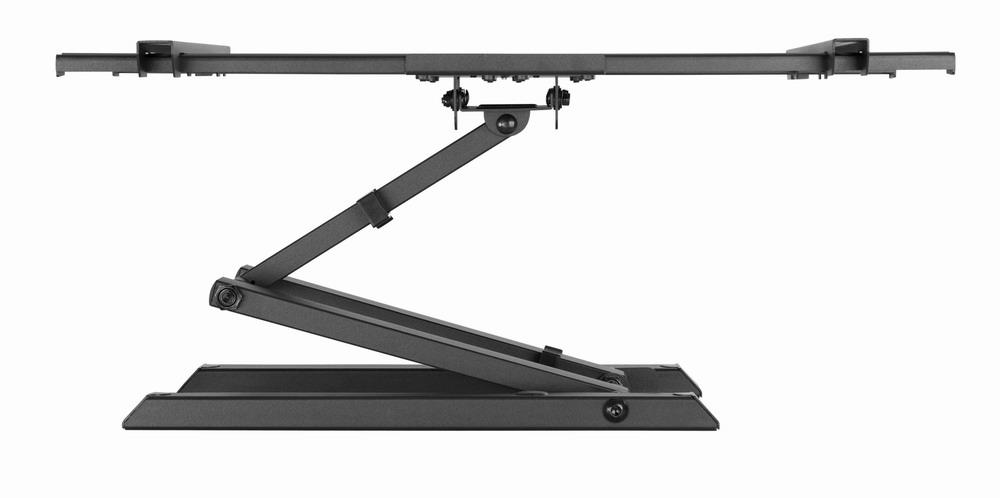

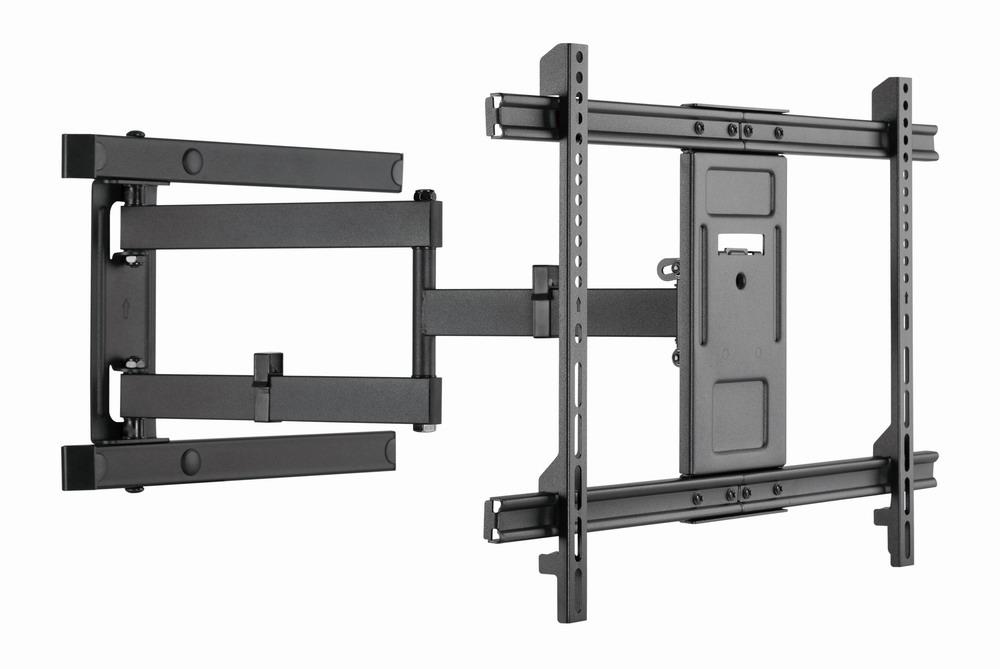

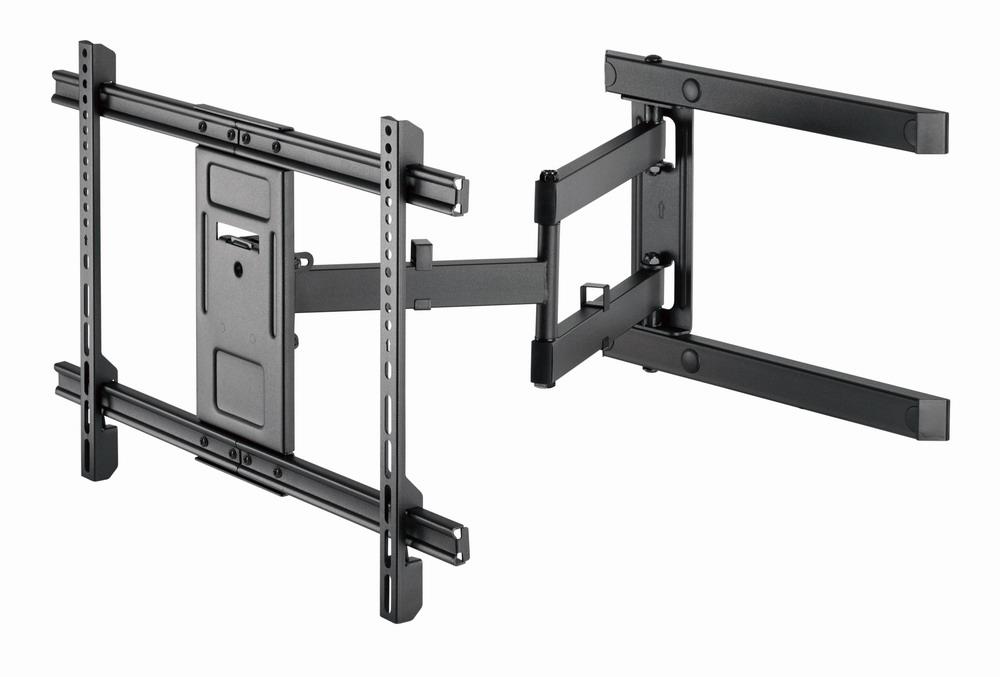

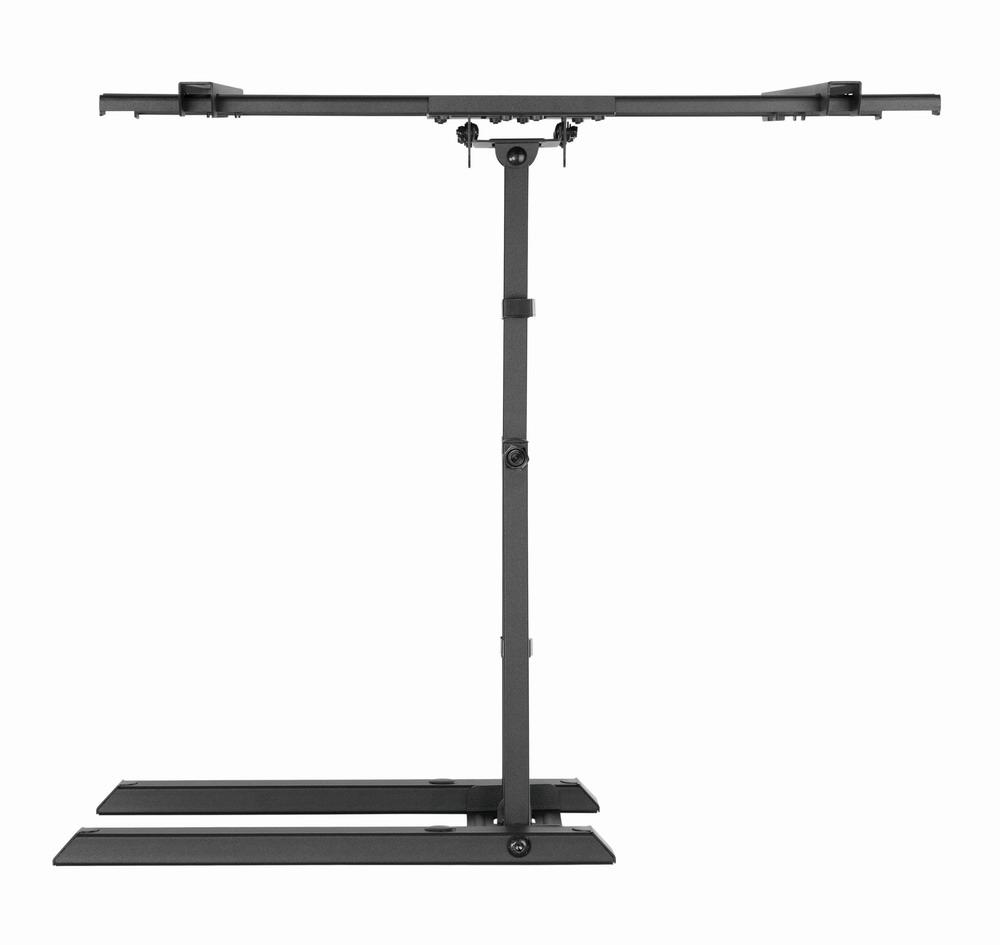

Single-arm full-motion TV wall mount
Supports most 37'' - 80'' LCD TV’s
VESA compatible, max. 600 mm x 400 mm
Allows up to 180 degrees swivel and 18 degrees tilting
Distance to wall: 76 - 620 mm
Practical integrated bubble level for perfect alignment
Includes all necessary installation materials
- Position your screen perfectly
- Lightweight and maneuverable design
General
| Unit Calculated Weight | 7.65 kg |
| Unit Calculated Volume | 0.01573 cubm |
| Units per Shipping Box | 2 |
| Summary | Gembird WM-80ST-05. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 3 - -15°, Swivel angle range: 90 - -90°, Distance to the wall (min): 7.6 cm, Distance to the wall (max): 62 cm. Product colour: Black |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.445 |
| Unit Box Width | 0.35 |
| Model | WM-80ST-05 |
Mounting
| Maximum screen size | 80 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400 mm |
Ergonomics
| Cable management | Yes |
| Distance to the wall (max) | 620 mm |
| Distance to the wall (min) | 76 mm |
| Pivot angle | 3 - -3 ° |
| Swivel angle range | 90 - -90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 3 - -15 ° |
| Turn angle | 180 ° |
Design
| Housing material | Plastic/Steel |
| Product colour | Black |
Technical details
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
Weight & dimensions
| Depth (max) | 425 mm |
| Height | 425 mm |
| Weight | 7300 g |
| Width | 620 mm |
Packaging data
| Package depth | 347 mm |
| Package height | 85 mm |
| Package type | Box |
| Package weight | 7625 g |
| Package width | 442 mm |
