Double arm full-motion TV wall mount with rotation function
Supports most 40'' - 80'' LCD/LED TV’s
VESA compatible, max. 600 mm x 400 mm
Wall distance 61 - 506 mm

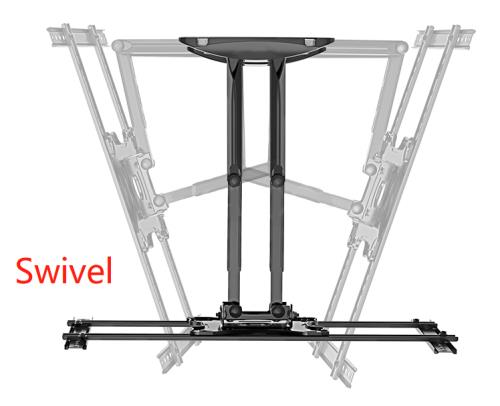

Allows up to 100 degrees swivel and 10 degrees tilting

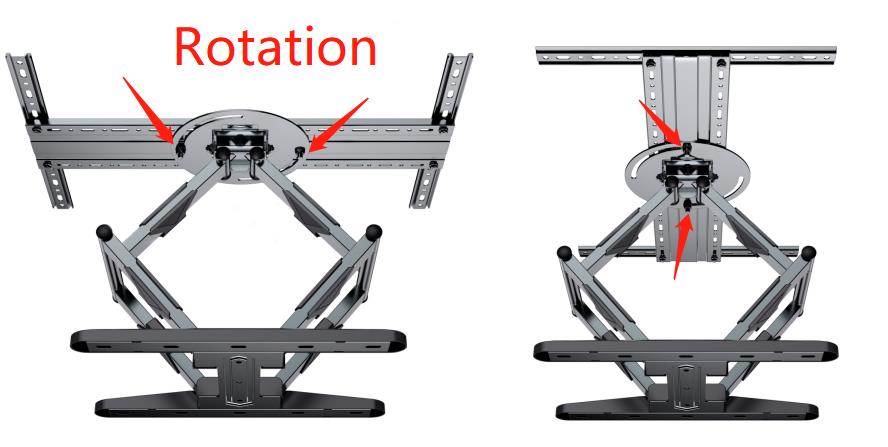

Max. 90 degrees rotation: allows to position your TV in both portait and landscape mode
Practical cable guides on the arms

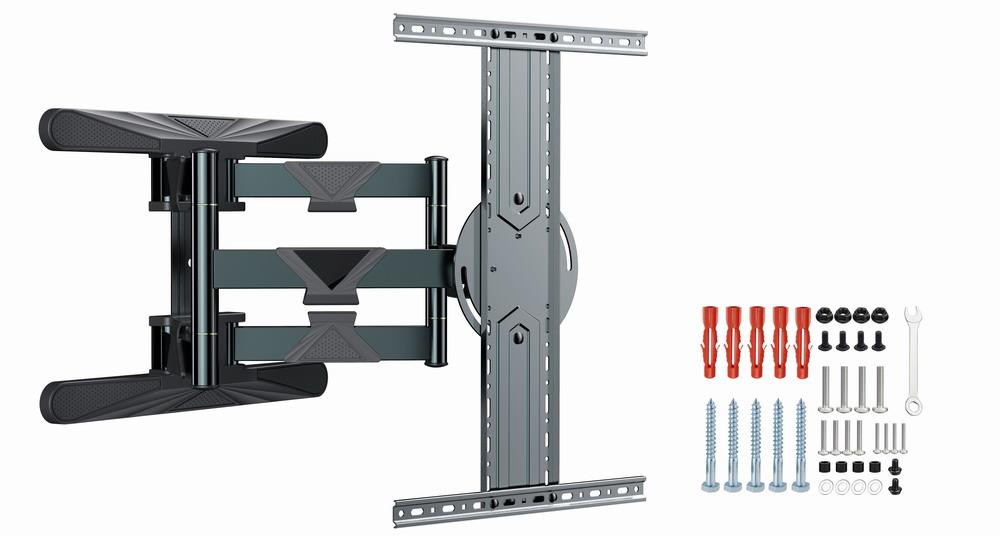

Includes all necessary installation materials
- Position your screen perfectly
- Lightweight and maneuverable design
General
| Unit Calculated Weight | 6.98 kg |
| Unit Calculated Volume | 0.0156 cubm |
| Units per Shipping Box | 3 |
| Summary | Gembird Rotating full motion TV wall mount, 40'' - 80''. Maximum weight capacity: 50 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -3 - 7°, Swivel angle range: -50 - 50°, Angle of rotation: 90°, Distance to the wall (min): 6.1 cm, Distance to the wall (max): 50.6 cm. Product colour: Steel |
| Unit Box Height | 0.35 |
| Unit Box Length | 0.64 |
| Unit Box Width | 0.06 |
| Model | WM-80STR-01 |
Mounting
| Maximum screen size | 80 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/600 x 400 mm |
Ergonomics
| Angle of rotation | 90 ° |
| Cable management | Yes |
| Distance to the wall (max) | 506 mm |
| Distance to the wall (min) | 61 mm |
| Pivot angle | -3 - 3 ° |
| Rotating | Yes |
| Swivel angle | 50 ° |
| Swivel angle range | -50 - 50 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 7 ° |
Design
| Housing material | Steel |
| Product colour | Steel |
Technical details
| Compliance certificates | RoHS |
| Easy to install | Yes |
| Number of arms | 2 |
| Orientation | Landscape/Portrait |
| Sustainability compliance | Yes |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
Weight & dimensions
| Height | 50 mm |
| Weight | 6200 g |
| Width | 210 mm |
Packaging data
| Package depth | 640 mm |
| Package height | 345 mm |
| Package type | Box |
| Package weight | 6980 g |
| Package width | 60 mm |
