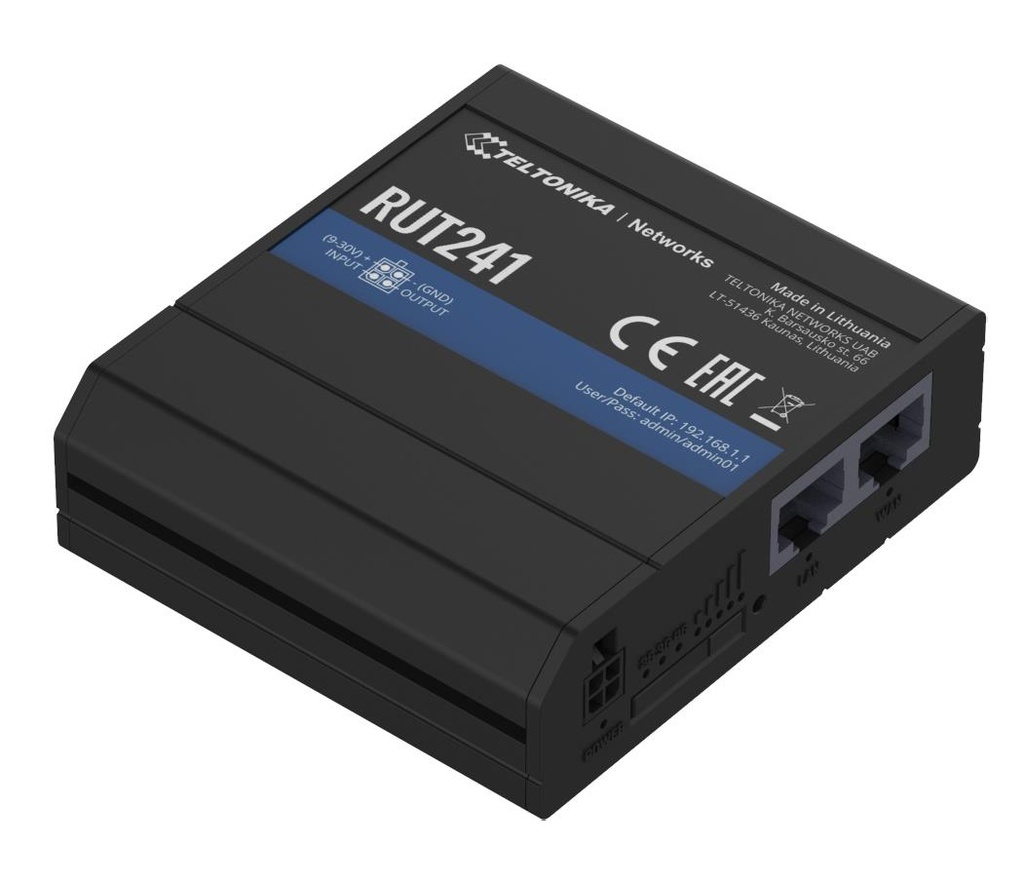

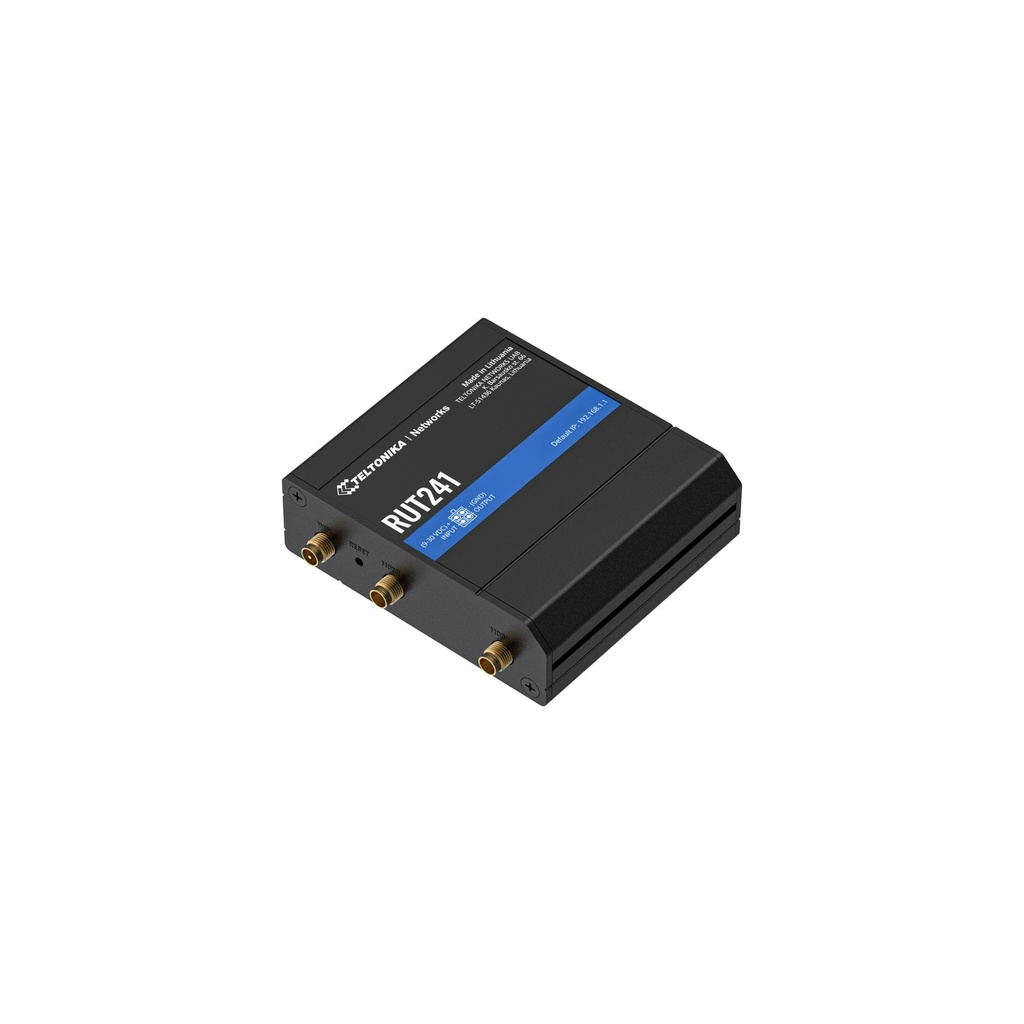

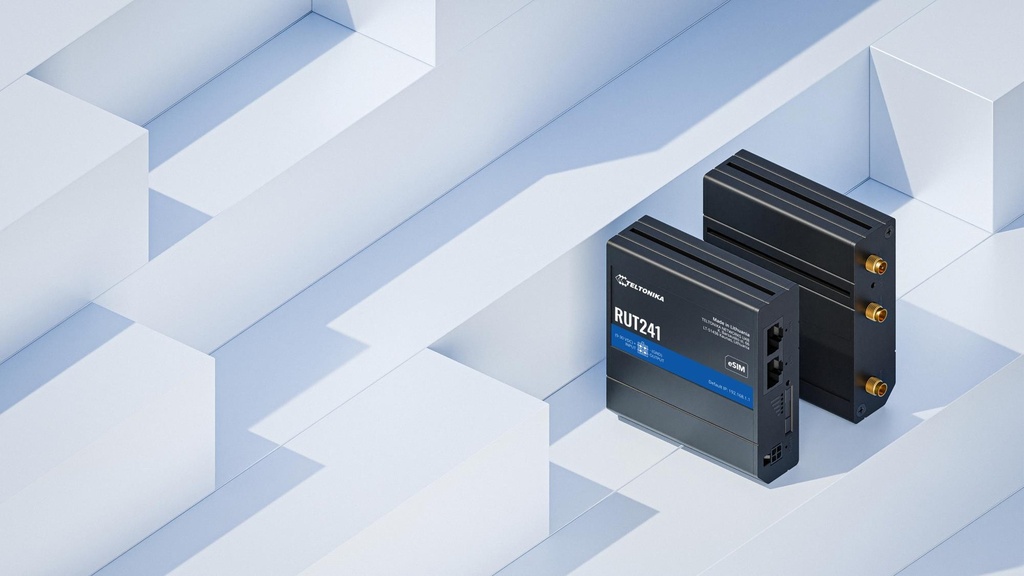

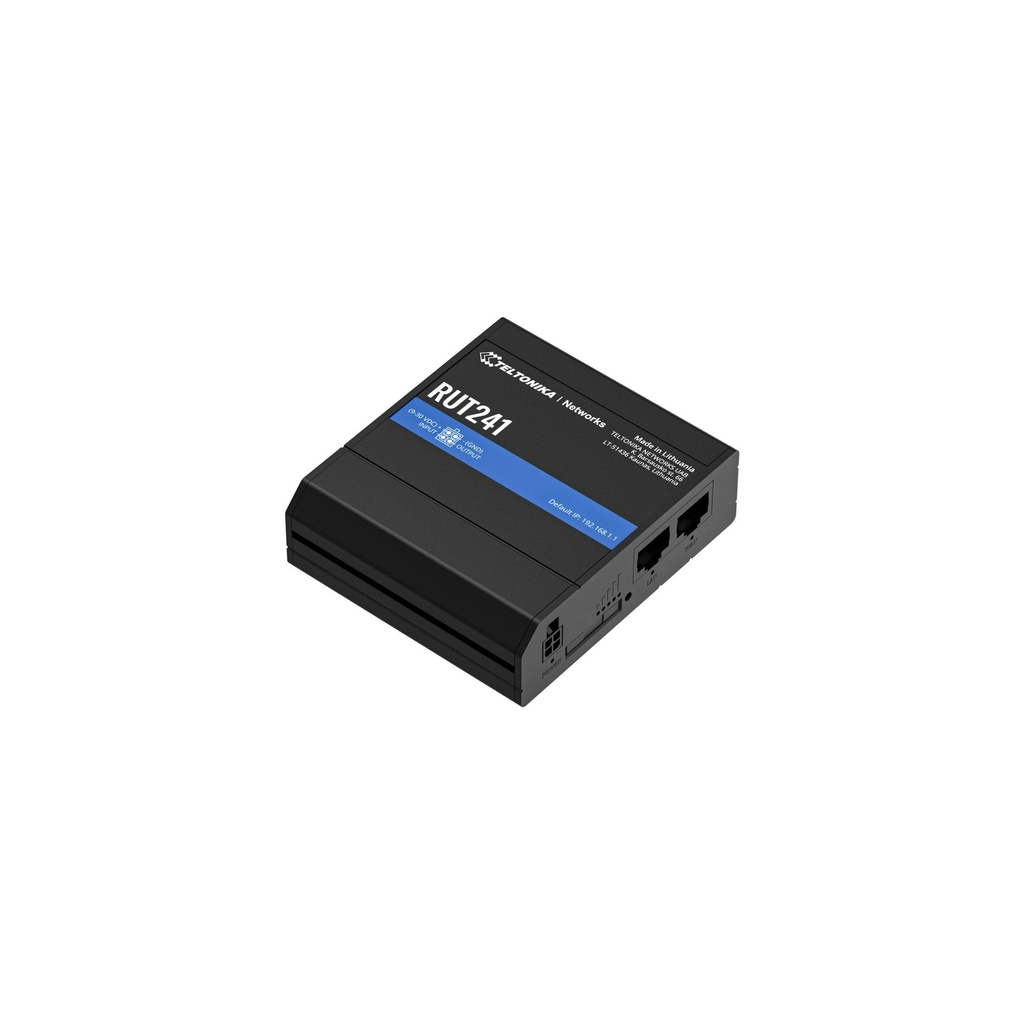

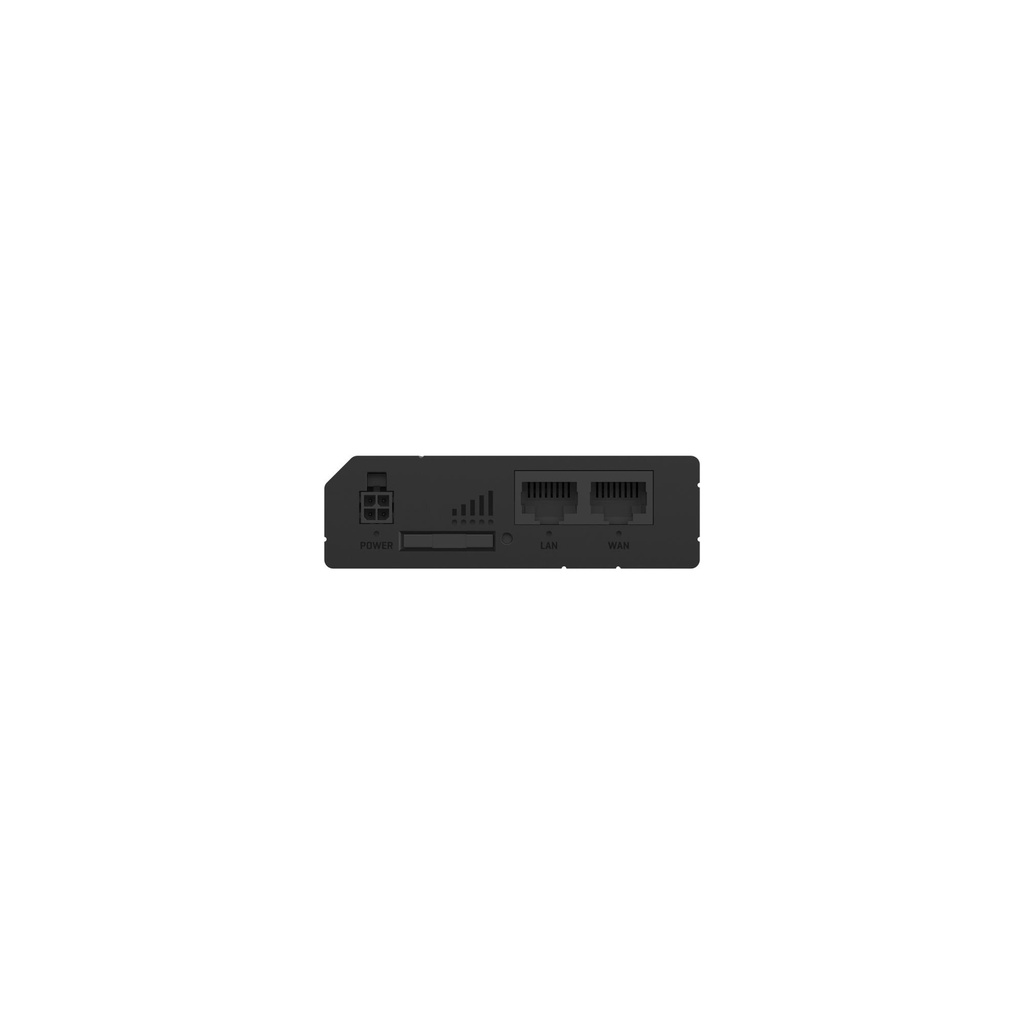

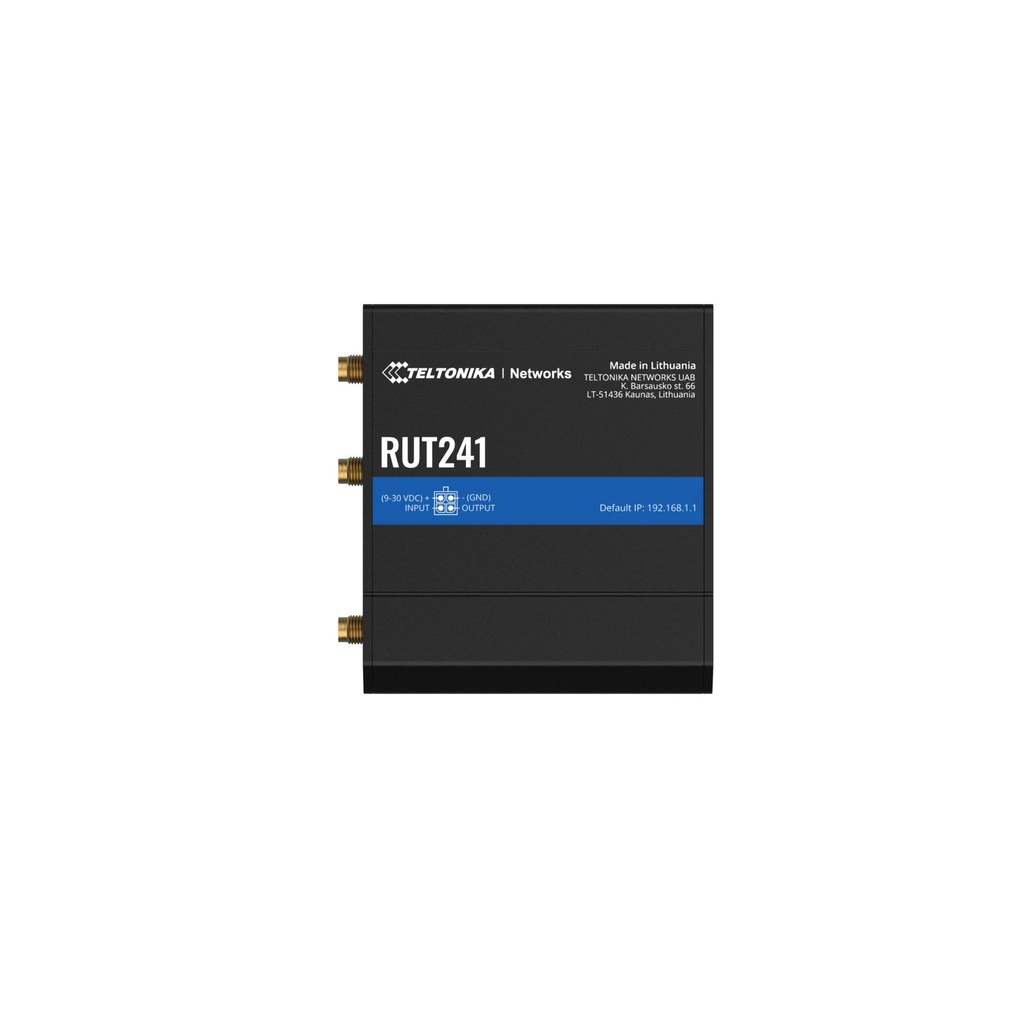

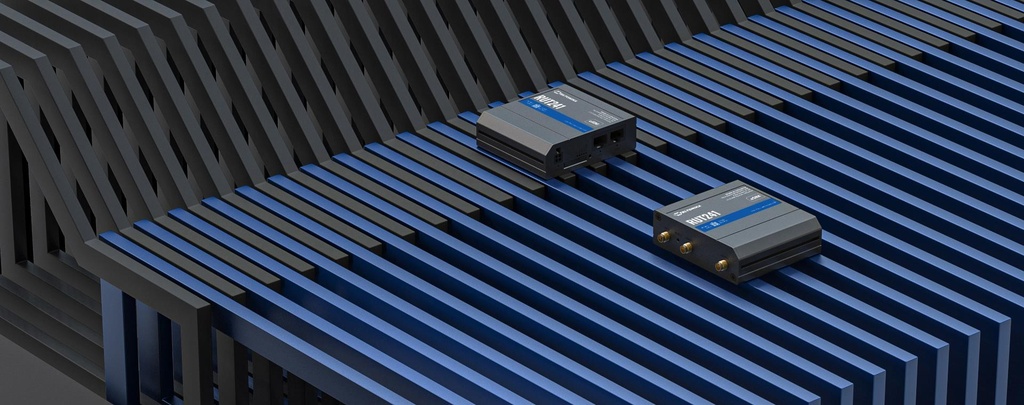

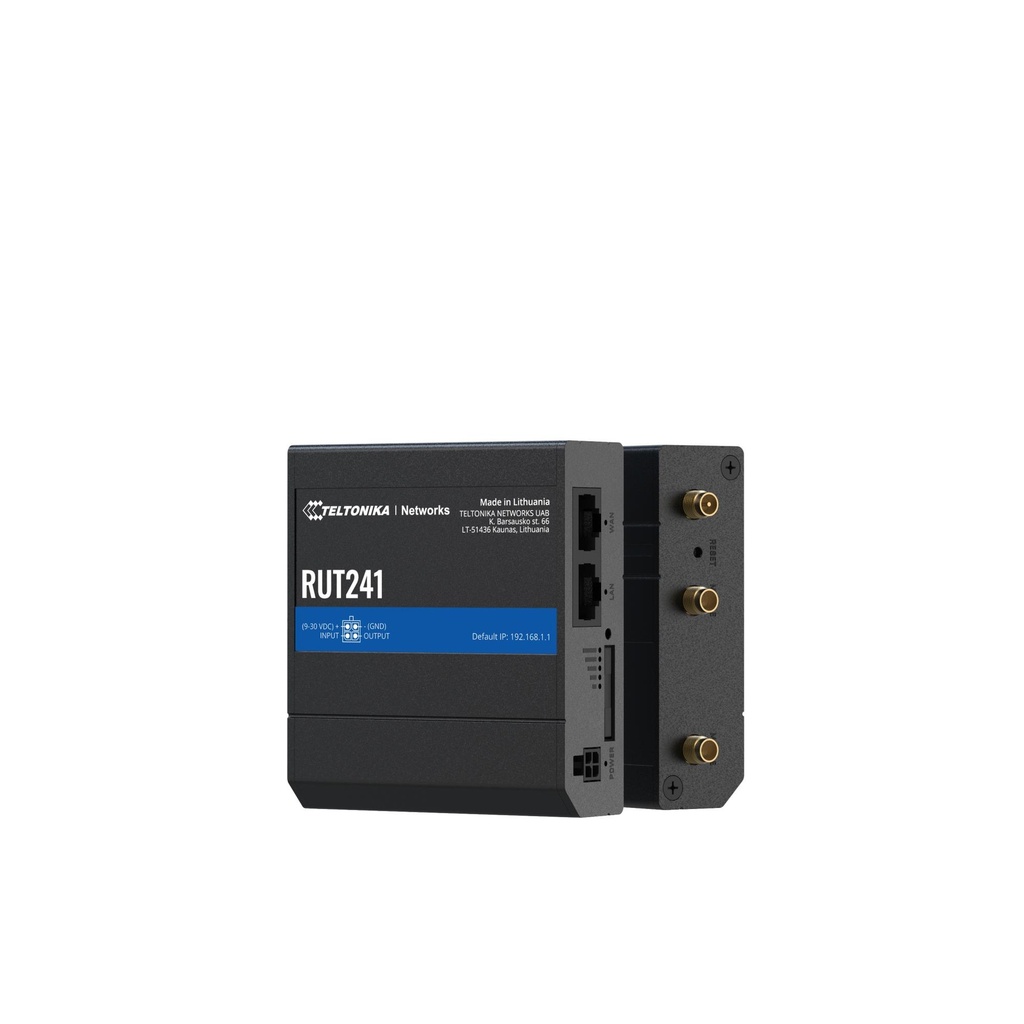

// RUT241 is the modified version of our all-time bestseller RUT240 that inherited its' best features, including industrial design, compact size, multiple connection interfaces, and compatibility with RMS.
// Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router offers unstoppable connection continuity with a backup through automatic failover.
// Digital Inputs and Outputs coupled with advanced RutOS software enable solution automation scenarios.
// RUT241 is an excellent fit in various IoT and M2M solutions that require easy setup, reliable network, and remote accessibility.
- 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A
- 3G: B1, B8
- 2G: B3, B8
General
| Unit Calculated Weight | 0.446 kg |
| Unit Calculated Volume | 0.002317 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Teltonika RUT241. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G, 4G standard: LTE, 2G bands supported: 900,1800 MHz. Security algorithms: HTTPS, SSH, SSL/TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.15 |
| Model name | RUT241 |
| Model | RUT241 |
Design
| Built-in display | No |
| Device type | Cellular network router |
| Housing material | Aluminium/Plastic |
| LED indicators | Yes |
| Market positioning | Industrial |
| Mounting | DIN-rail |
| Product colour | Black |
| Reset button | Yes |
Ethernet LAN features
| Auto MDI/MDI-X | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.3/IEEE 802.3u |
Wireless LAN features
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
Mobile network
| 2G bands supported | 900,1800 MHz |
| 3G bands supported | 2100/850/900 MHz |
| 4G bands supported | 2300/2500/2600 MHz |
| 4G standard | LTE |
| Data network | 2G/3G/4G |
| Number of SIM cards | 1 |
| Short Message Service (SMS) | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Network address translation (NAT) | Yes |
| Port forwarding | Yes |
| Security algorithms | HTTPS/SSH/SSL/TLS/WEP/WPA2-Enterprise/WPA2-PSK/WPA-EAP/WPA-PSK |
Performance
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 3 |
| Built-in processor | Yes |
| Processor frequency | 0.58 GHz |
| RAM capacity | 0.128 GB |
| Web-based management | Yes |
Power
| Output voltage | 9 - 30 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 74 mm |
| Height | 25 mm |
| Weight | 125 g |
| Width | 83 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
