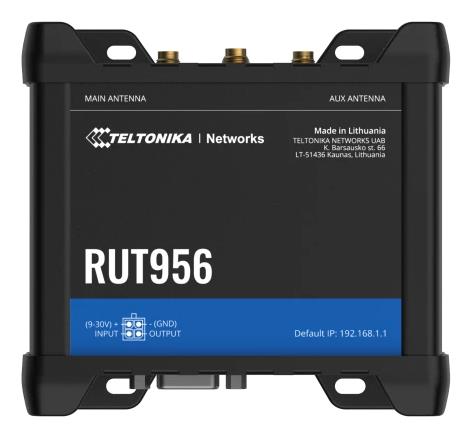

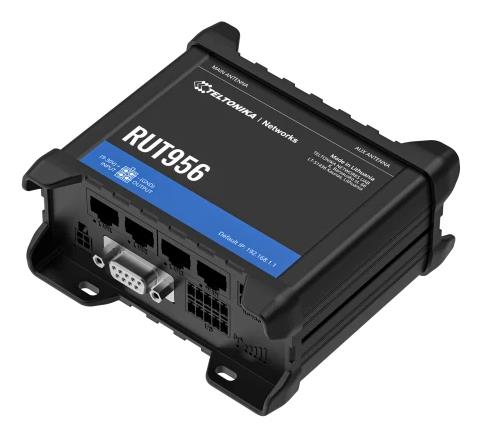

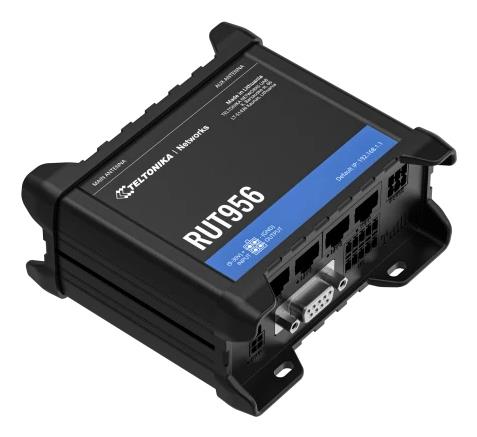

// RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities.
// Automatic WAN failover ensures solution uptime even if the primary connection is lost.
// Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment.
// Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications.
// Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.
- 4G (LTE-FDD): B1, B3, B5, B7, B8, B20
- 4G (LTE-TDD): B40
- 3G: B1, B5, B8
- 2G: B3, B8
General
| Unit Calculated Weight | 0.87 kg |
| Unit Calculated Volume | 0.003727 cubm |
| Units per Shipping Box | 1 |
| Summary | Teltonika RUT956. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G. Serial interface type: RS-232, RS-485 |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.06 |
| Model name | RUT956100000 |
| Model | RUT956 |
Design
| Device type | Cellular network router |
| Housing material | Aluminium/Plastic |
| LED indicators | Yes |
| Market positioning | Industrial |
| Mounting | DIN-rail |
| Product colour | Black |
| Reset button | Yes |
Ethernet LAN features
| Auto MDI/MDI-X | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.3/IEEE 802.3u |
Wireless LAN features
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
Mobile network
| Data network | 2G/3G/4G |
| Number of SIM cards | 2 |
| Short Message Service (SMS) | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
| Serial interface type | RS-232/RS-485 |
| Serial ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Network address translation (NAT) | Yes |
| Port forwarding | Yes |
| Security algorithms | HTTPS/SSH/SSL/TLS/TLS/WEP/WPA2-Enterprise/WPA2-PSK/WPA-EAP/WPA-PSK |
GPS Performance
| BeiDou | Yes |
| Embedded GNSS | Yes |
| Galileo | Yes |
| GLONASS | Yes |
| Quasi-Zenith Satellite System (QZSS) | Yes |
Performance
| Antenna type | External |
| Antennas quantity | 5 |
| Built-in processor | Yes |
| GPS (satellite) | Yes |
| Operating system installed | RutOS |
| Processor frequency | 0.58 GHz |
| RAM capacity | 0.128 GB |
| Web-based management | Yes |
Power
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 287 g |
| Width | 220 mm |
