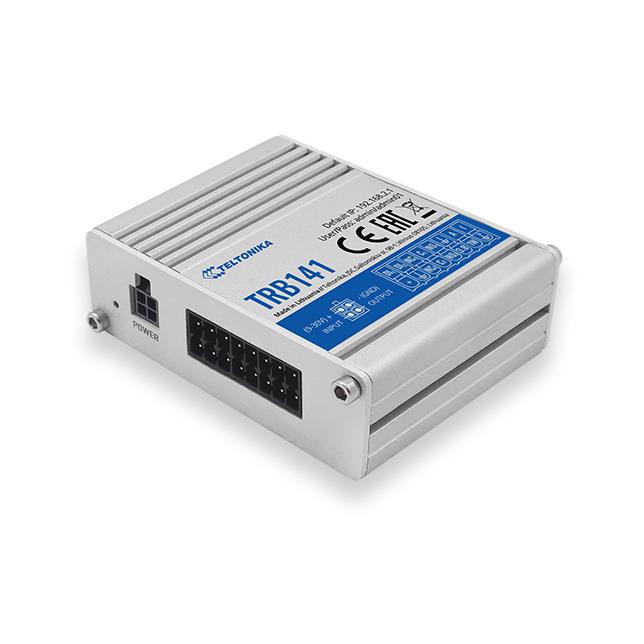

This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.
Standart package contains
- TRB141 Gateway
- Euro PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- I/O connector
- QSG (Quick Start Guide)
- Packaging box
- Multiple Inputs/Outputs for remote monitoring and control
- LTE Cat 1 for M2M/IoT communications
- Compact size, easy integration
- Wide range of power supply voltages
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
General
| Unit Calculated Weight | 0.462 kg |
| Product Net Weight | 0.129 kg |
| Unit Calculated Volume | 0.002396 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Teltonika TRB141. Product colour: Grey, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. Processor frequency: 1200 MHz, Internal memory: 128 MB, Flash memory: 512 MB. Management protocols: HTTP/HTTPS, JSON-RPC, RMS, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT. VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, NAT functionality: NAT, NAT-T |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.15 |
| Product model code | TRB141003000 |
| Model | TRB141 |
Design
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Grey |
Features
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 1 |
| Short Message Service (SMS) | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 512 MB |
| Internal memory | 128 MB |
| Number of processors installed | 1 |
| Processor frequency | 1200 MHz |
Protocols
| Management protocols | HTTP/HTTPS, JSON-RPC, RMS |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
Network
| Dynamic DNS (DDNS) | Yes |
| NAT functionality | NAT, NAT-T |
| VPN support | OpenVPN, IPsec, GRE, PPTP, L2TP |
| Wi-Fi | No |
| Wireless connection | Yes |
Security
| Firewall security | Yes |
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES/DES/HTTPS/SSH/SSL/TLS |
Ports & interfaces
| Number of simultaneous SIM cards | 1 |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| USB 2.0 ports quantity | 1 |
Management features
| Reset button | Yes |
| Web-based management | Yes |
Power
| DC input voltage | 9 - 30 V |
Weight & dimensions
| Depth | 18 mm |
| Height | 60 mm |
| Weight | 136 g |
| Width | 70 mm |
Packaging content
| Manual | Yes |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Certificates
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 + |
| Safety | IEC 62368-1:2014, EN 50385:2017, EN 62232:2017 |
