Ubiquiti UXG-Fiber (30W)
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
General
| Unit Calculated Weight | 1.49 kg |
| Product Net Weight | 0.605 kg |
| Unit Calculated Volume | 0.008526 cubm |
| Units per Shipping Box | 8 |
| Summary | Ubiquiti UXG-Fiber (30W). Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Activity, LAN, Link, System. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor frequency: 2200 MHz. Routing protocols: OSPF. Ethernet LAN data rates: 1000,2500,10000 Mbit/s. Security algorithms: IPSec, TLS |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.24 |
| Model | UXG-Fiber |
Design
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Activity/LAN/Link/System |
| Product colour | White |
Performance
| Built-in processor | Yes |
| Control display unit | No |
| Internal memory | 2000 MB |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 2200 MHz |
| Processor manufacturer | ARM |
Protocols
| Routing protocols | OSPF |
Network
| Bluetooth | Yes |
| Ethernet LAN data rates | 1000/10000/2500 Mbit/s |
| Load balancing | Yes |
Security
| Firewall security | Yes |
| Security algorithms | IPSec/TLS |
| VLAN support | Yes |

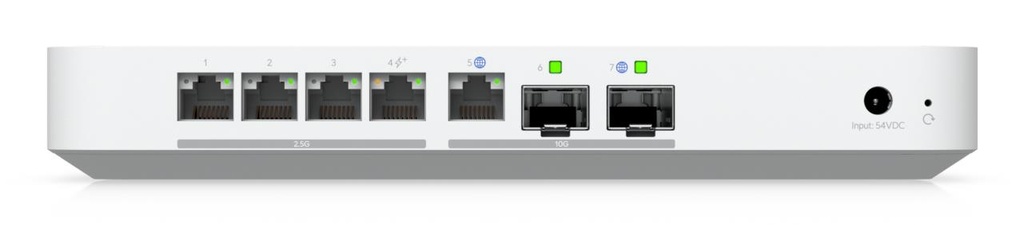

Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| SFP+ ports quantity | 2 |
| WAN connection | Ethernet (RJ-45),SFP |
Management features
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Power
| DC input voltage | 54 V |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Input current | 1.1 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
Weight & dimensions
| Depth | 127.6 mm |
| Height | 30 mm |
| Weight | 605 g |
| Width | 212.8 mm |

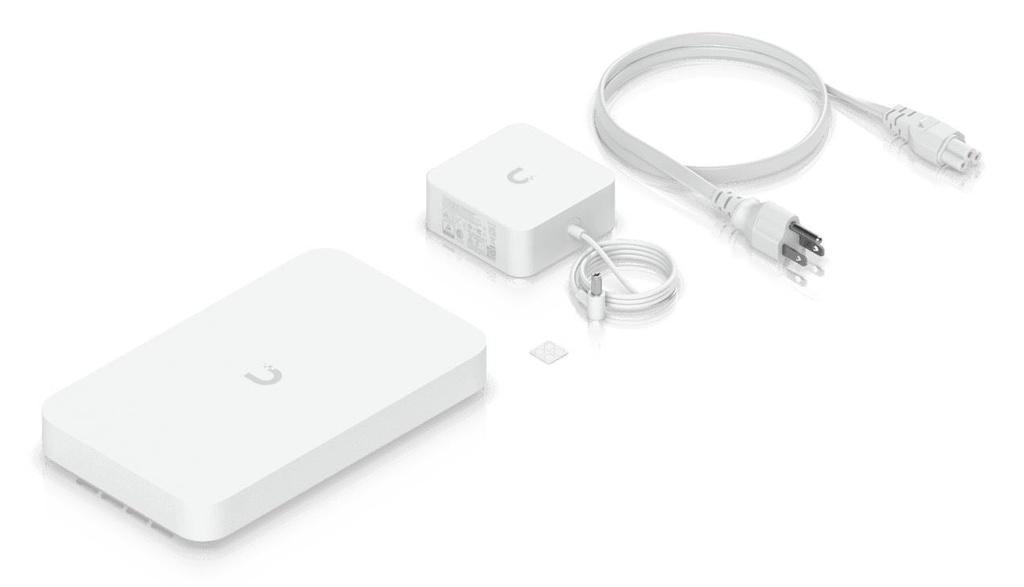

Packaging content
| AC adapter included | Yes |
| Cables included | Power |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
