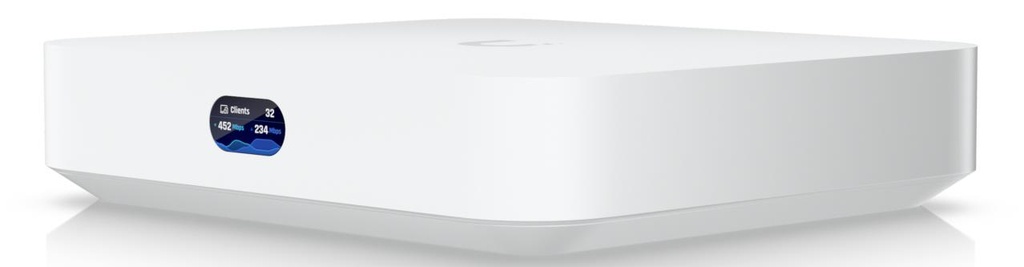

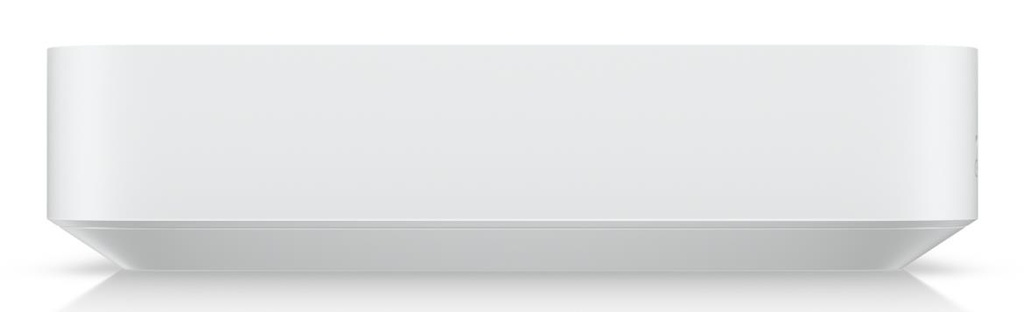

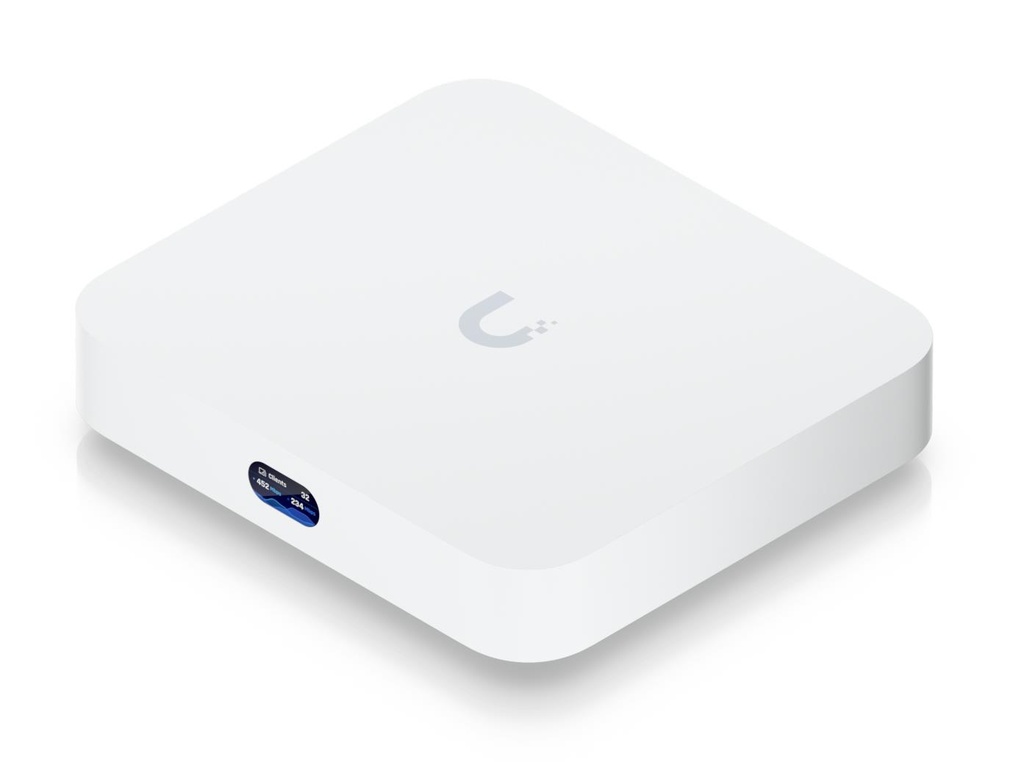

Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
- Runs UniFi Network for full-stack network management
- Manages 30+ UniFi Network devices and 300+ clients
- 1 Gbps routing with IDS/IPS
- Multi-WAN load balancing

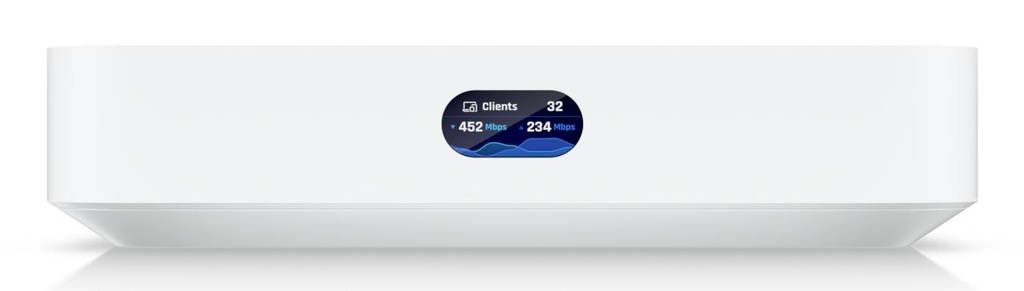

- 0.96" LCM status display
- USB-C powered (adapter included)
General
| Unit Calculated Weight | 0.95 kg |
| Product Net Weight | 0.52 kg |
| Unit Calculated Volume | 0.003933 cubm |
| Units per Shipping Box | 10 |
| Summary | Ubiquiti ULTRA. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: LAN. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A53. Ethernet LAN data rates: 1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). WAN connection: Ethernet (RJ-45). Power consumption (max): 6.2 W, Input voltage: 100 - 240 V, Output voltage: 5 V |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.08 |
| Product model code | UCG-Ultra |
| Model | Cloud Gateway Ultra |
Design
| Enclosure material | Polycarbonate (PC) |
| LED indicators | LAN |
| Product colour | White |
Performance
| Built-in processor | Yes |
| Control display unit | Yes |
| Flash memory | 16384 MB |
| Internal memory | 3072 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 1500 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A53 |
Protocols
| DHCP server | Yes |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000 Mbit/s |
Security
| Firewall security | Yes |
| VLAN support | Yes |
Ports & interfaces

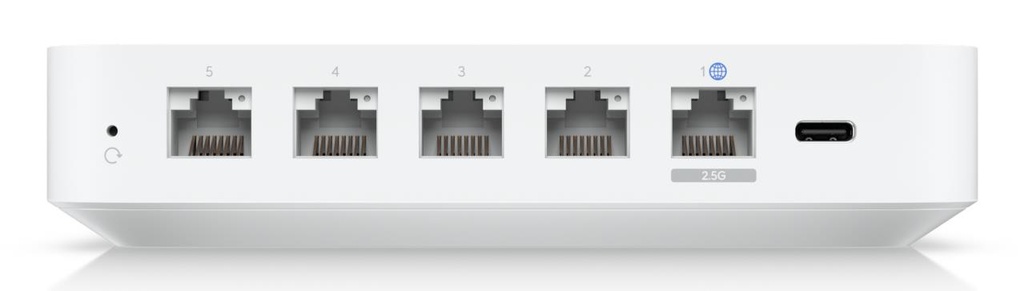

| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Power
| Input voltage | 100 - 240 V |
| Output current | 3 A |
| Output voltage | 5 V |
| Power consumption (max) | 6.2 W |
Weight & dimensions
| Depth | 127.6 mm |
| Height | 30 mm |
| Weight | 520 g |
| Width | 141.8 mm |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 40 °C |
Certificates
| Certification | CE, FCC, IC |
