A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
- Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
- Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
- (1) GbE WAN port
- (1) GbE LAN port
- Compact footprint

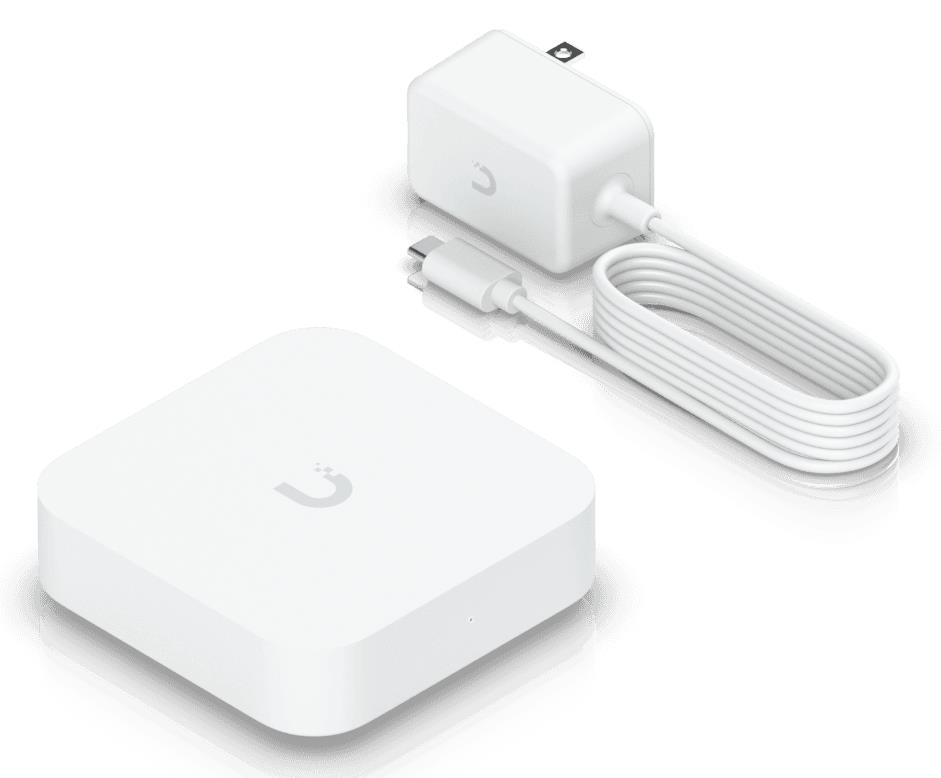

- USB-C powered (adapter included)
General
| Unit Calculated Weight | 0.588 kg |
| Product Net Weight | 0.32 kg |
| Unit Calculated Volume | 0.002467 cubm |
| Units per Shipping Box | 20 |
| Summary | Ubiquiti UXG-Lite. Product colour: White, Enclosure material: Polycarbonate (PC). Processor manufacturer: ARM, Processor model: Cortex-A53, Processor frequency: 1000 MHz. Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: IPSec. WAN connection: Ethernet (RJ-45) |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.128 |
Design
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Yes |
| Product colour | White |
Performance
| Built-in processor | Yes |
| Control display unit | No |
| Internal memory | 1000 MB |
| Internal memory type | DDR3L |
| Number of processors installed | 1 |
| Processor frequency | 1000 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A53 |
Protocols
| DHCP server | Yes |
Network
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Security
| Firewall security | Yes |
| Security algorithms | IPSec |
| VLAN support | Yes |

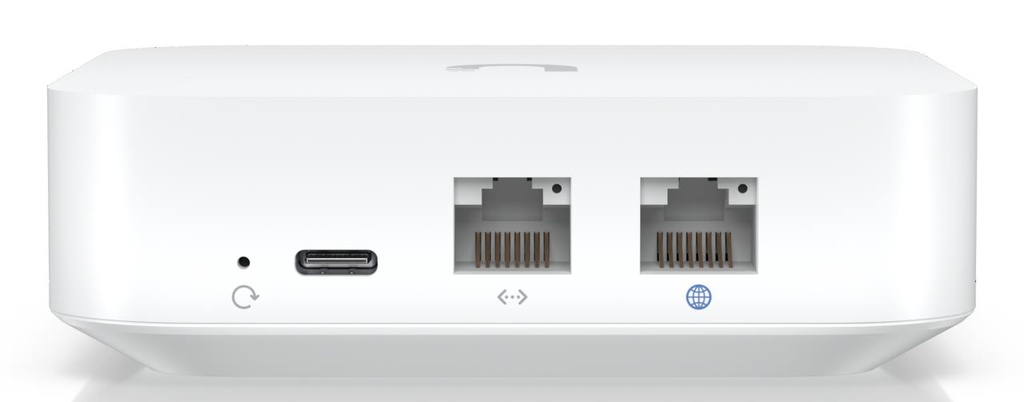

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Power
| Input current | 3 A |
| Input voltage | 5 V |
| Power consumption (max) | 3.83 W |
Weight & dimensions
| Depth | 98 mm |
| Height | 30 mm |
| Weight | 320 g |
| Width | 98 mm |
Packaging content
| AC adapter included | Yes |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 40 °C |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC) |
