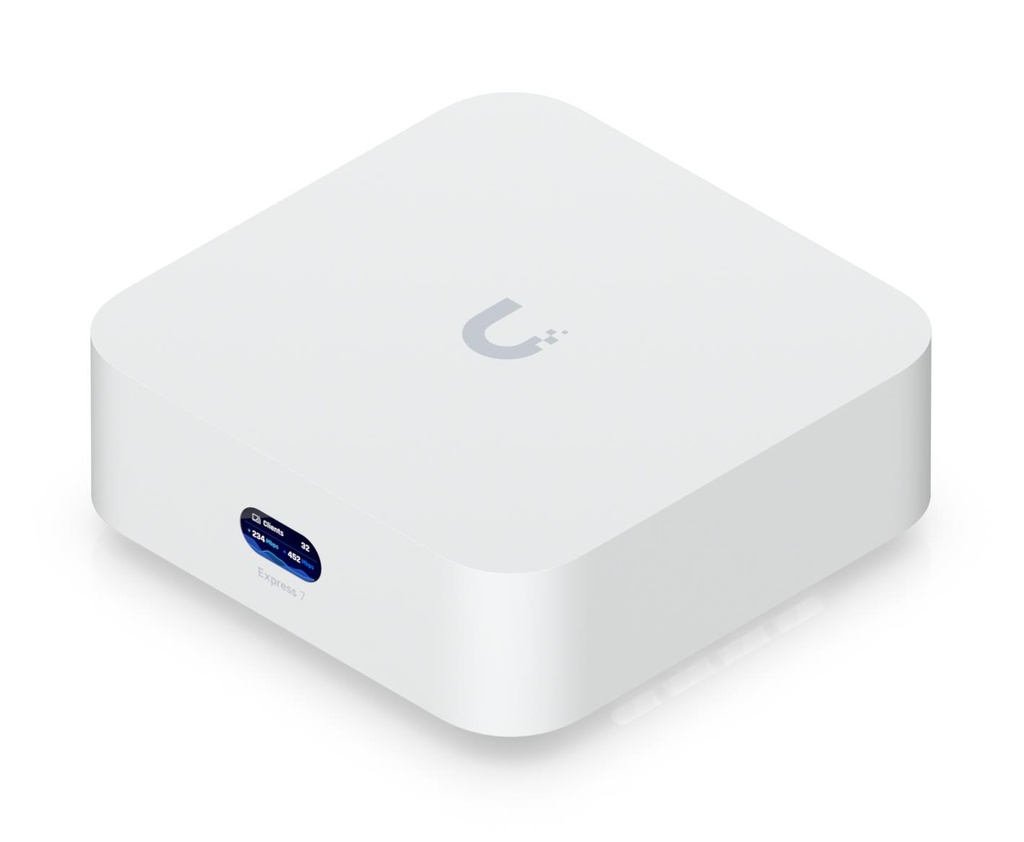

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
General
| Unit Calculated Weight | 1.27 kg |
| Product Net Weight | 0.5 kg |
| Unit Calculated Volume | 0.007265 cubm |
| Units per Shipping Box | 10 |
| Summary | Ubiquiti UniFi Express 7. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Status. Antenna type: Internal, Antenna gain level (max): 6 dBi. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Networking standards: IEEE 802.1Q, WLAN data transfer rates supported: 1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s |
| Unit Box Height | 0.091 |
| Unit Box Length | 0.181 |
| Unit Box Width | 0.205 |
| Model | UX7 |
Design
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Status |
| Product colour | White |
Features
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
Performance
| Built-in processor | Yes |
| Control display unit | Yes |
| Display type | LCM |
| Internal memory | 3000 MB |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 1500 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A53 |
Protocols
| DHCP server | Yes |
| Routing protocols | OSPF |
Network
| Bluetooth | Yes |
| Data transfer rate | 5.7 Gbit/s |
| Ethernet LAN data rates | 10/100/1000/10000/2500 Mbit/s |
| Frequency band | 2.4, 5, 6 GHz |
| Load balancing | Yes |
| Networking standards | IEEE 802.1Q |
| Wi-Fi | Yes |
| Wireless connection | Yes |
| WLAN data transfer rates supported | 1/11/12/18/2/24/300/36/48/5.5/54/6/6.5/9 Mbit/s |
Security
| Firewall security | Yes |
| Security algorithms | 802.1x RADIUS/IPSec/PPSK/TLS/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
| VLAN support | Yes |
Ports & interfaces

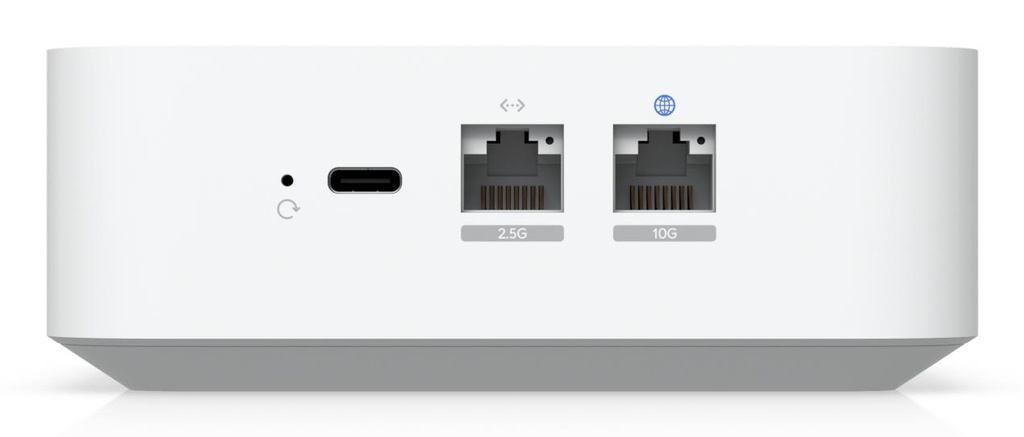

| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Power
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Input current | 5 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 22 W |
Weight & dimensions
| Depth | 117 mm |
| Height | 42.5 mm |
| Weight | 422 g |
| Width | 117 mm |

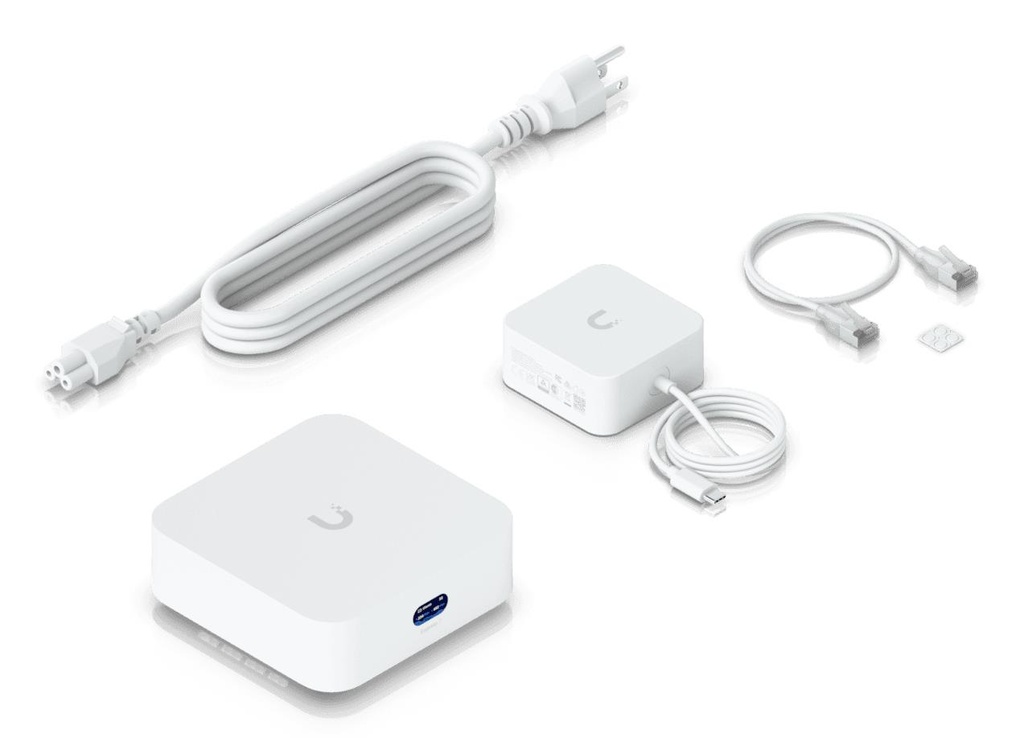

Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45)/Power |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 40 °C |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |

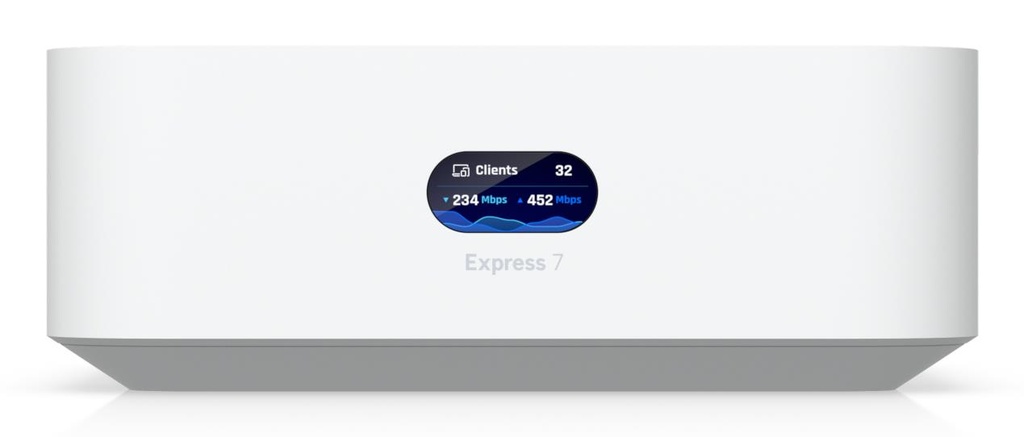

Display
| Display diagonal | 0.96 " |
